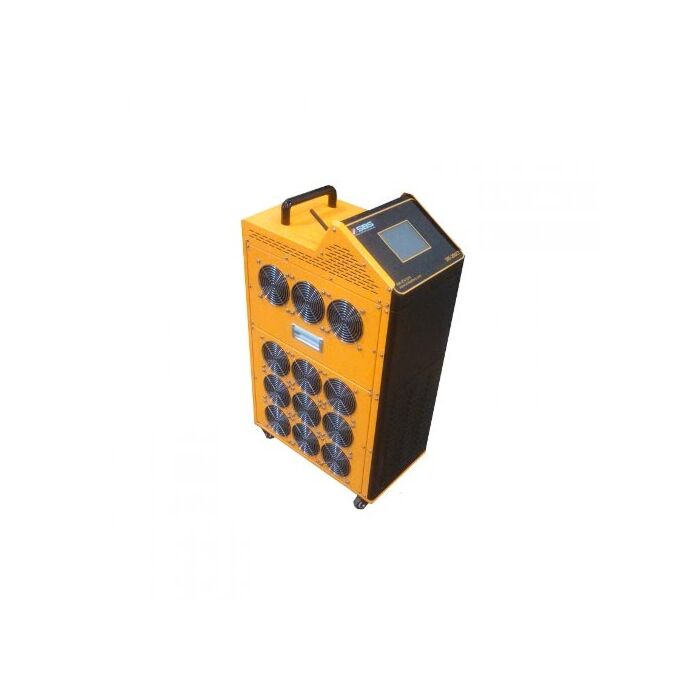

Storage Battery System SBS-200CT
Load Bank/Cycler,12-96VDC 0-200A(inc.11-2/6/12V Modules)

Order #: SBS-200CT

Mfg #: SBS-200CT

Questions about availability or need help? Contact Us:

(800) 633-0561
$16,373.00

Storage Battery System SBS-200CT

Load Bank/Cycler,12-96VDC 0-200A(inc.11-2/6/12V Modules)

Order #: SBS-200CT

Mfg #: SBS-200CT

$16,373.00
Availability: Ships in 3-4 weeks

Product Highlights

The SBS-200CT discharge cycler is designed for testing charge and discharge cycle of batteries. It has a wide voltage range covering from 2 to 96V. The adjustable stop points and multiple alarm designs of the device control the charge and discharge cycle efficiently.

Various testing parameters can be easily viewed through a 5.7 inch LCD touch screen. When the SBS-200CT is fitted with an industrial charger, it provides an unmanned discharge/cycling solution based on the needs of material handling.

The SBS-200CT is suitable for all kinds of traction batteries including train, wheel chair, golf cart, automobile, forklifts etc. It can also be used to test the overall system voltage and individual cell voltages.

  • Wide voltage range: 2 to 96V
  • Wireless modules for collecting individual cell/battery voltage data during discharge
  • 5.7 inch LCD touch screen to visualize testing parameters
  • Automated multiple discharge/charge cycle operation
  • Adjustable stop points with multiple alarm designs for efficient control of discharge and charge cycles
  • Supports RS232 real time monitoring by PC
  • PC analysis software to evaluate battery capacities and generate reports
