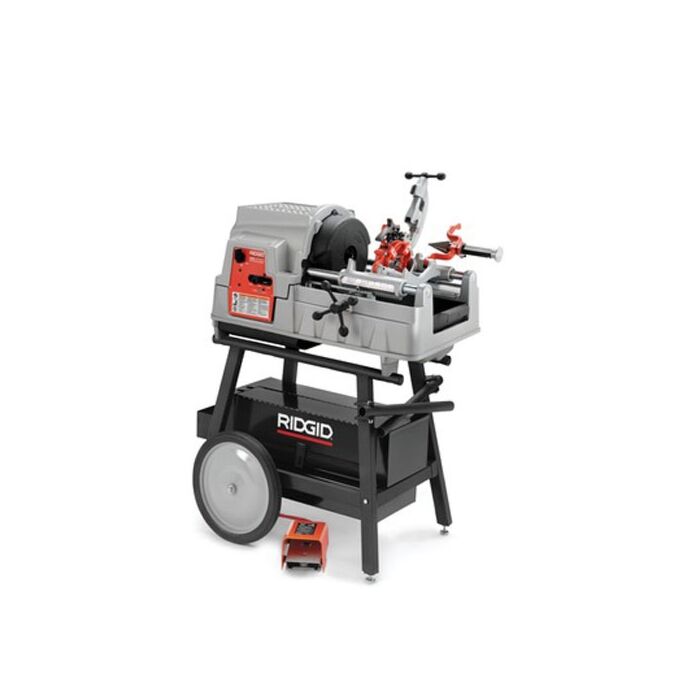

Ridgid Tools 535A
Automatic Threading Machine Die Head 811A,1/2-2"NPT,2HP

Order #: 84097

Mfg #: 84097

Questions about availability or need help? Contact Us:

(800) 633-0561
$12,429.69

Ridgid Tools 535A

Automatic Threading Machine Die Head 811A,1/2-2"NPT,2HP

Order #: 84097

Mfg #: 84097

$12,429.69
Availability: Ships in 3-4 weeks

Product Highlights

  • 1/2" - 2" NPT Automatic Chuck Machine
  • Automatic chuck.
  • Large 6.6 l (1.75 gallon) oil reservoir.
  • Large chip tray.
  • Generous top cover area for keeping tools and fittings handy.
  • High clearance carriage.
  • Can be used with geared threader Model 141.
  • Uses Model 816/817 semi-automatic, Model 815A self-opening or Model 811A quick-opening die heads.
  • Length gauge for quick, accurate cut-off.
  • Pipe Capacity 1/8"-2" (3 mm-50 mm) 2 1/2"-4" (62 mm-100 mm) with 141 geared threader.
  • Bolt Capacity 1/4"-2” (8 mm-50 mm).
  • Switches Forward/off/reverse and integral safety foot switch.
  • Chuck Automatic with four reversible forged jaws.
  • Rear Centering Device Automatic, centering only.

Each Unit Includes

  • 11931 - Thread Cutting Oil
  • 44185 - Wheel, Cutter E1032
  • 97065 - 811A 1/8” - 2” NPT Die Head, Self-Opening, RH
  • 47765 - 1/2" - 3/4" Pipe Dies for use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842)
  • 47770 - 1" - 2" Pipe Dies for use in Universal Die Heads (Nos. 504A, 711, 713, 811A, 815A, 816, 817 and 842)
  • 42365 - 341 Reamer Assy
  • 42390 - 820 Cutter Assy
  • 46030 - 3/16" Hex Key
  • 46015 - Key, Hex 5/32
  • One Gallon Extreme Performance Threading Oil
  • Diehead, 811A QO L/Die
