Rice Lake Weighing Systems 21495

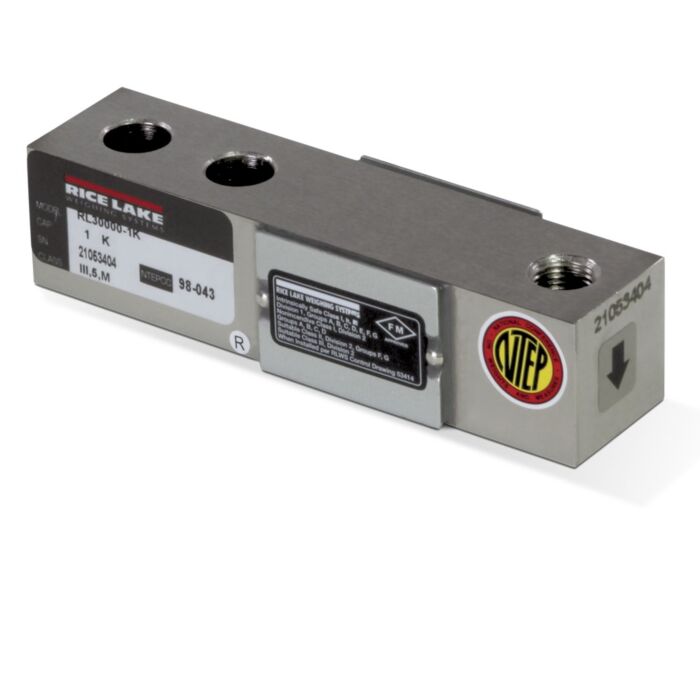

Single-Ended Beam Load Cell RL30000I Alloy Steel,2500lbs.
Order #: 21495-RL
Mfg #: 21495
Special Price
$401.85
Regular Price
$436.80
The RL30000 alloy steel, threaded hole, single-ended beam load cell is designed for low-profile scales and process applications.
Availability: Call for availability
Product Highlights
- Load Cell,SEB RL30000I- 2.5K 2500lb 20ft 3mv/v 350 Ohm NTEP III 3S/III 5M FM WW IP67
- Full Scale Output: 3.0 mV/V
- Bridge Resistance: 350 ohms, nominal
- Material/Finish: High-alloy steel, nickel plated
- Seal Type: Environmentally sealed, IP67
- Safe Overload: 150% full scale
- Safe Sideload: 100% full scale
- Temperature: Compensated range 14°F to 104°F/-10°C to 40°C Operating range -40°F to 150°F/-40°C to 65°C
- Rated Excitation: 5-10 VDC (15 V maximum)
- Nonlinearity: 0.03% Full scale
- Hysteresis: 0.02% Full scale
- Insulation Resistance: 5,000 megohms
- Deflection at Capacity: 250-1,000 lb = .013 in/.33 mm, 2000-3000 lb = .015 in/.38 mm, 4000-5000 lb = .025 in/.64 mm, 10,000 lb = .032 in/.81 mm, 15,000-20,000 lb = .038 in/.97 mm
- Cable Length: 20ft (6.1m)
- Cable Diameter: .200 polyurethane jacket
- Cable Color Code: Red......................+ Excitation Black.......................– Excitation Green .........................+ Signal White ......................– Signal
- Warranty: Two-year limited warranty
- Approvals: FM Approved NTEP CE
