Ralston Instruments QTCM-2MBA-20-2
QTCM Manifold,1/4"MNPT Gauge Adapter,20ft,2ft Hoses,NylonBag
Order #: QTCM-2MBA-20-2
Mfg #: QTCM-2MBA-20-2
$937.62
Ralston Instruments QTCM-2MBA-20-2
QTCM Manifold,1/4"MNPT Gauge Adapter,20ft,2ft Hoses,NylonBag
Order #: QTCM-2MBA-20-2
Mfg #: QTCM-2MBA-20-2
Product Highlights
- Fine adjustment piston provides precise pressure control instead of trying to make adjustments with a pressure regulator and a needle valve
- Soft-seated valves make filling and venting the system very precise
- Compact design allows the manifold, gauge adapter, and hoses to fit in the included nylon bag
- Low volume Quick-test hose, gauge adapter, and process connection reduce gas usage and make nitrogen cylinders last longer
- Each kit comes with the hoses and gauge or pressure calibrator adapter needed so that you can start calibrating within minutes
- Made in U.S.A.

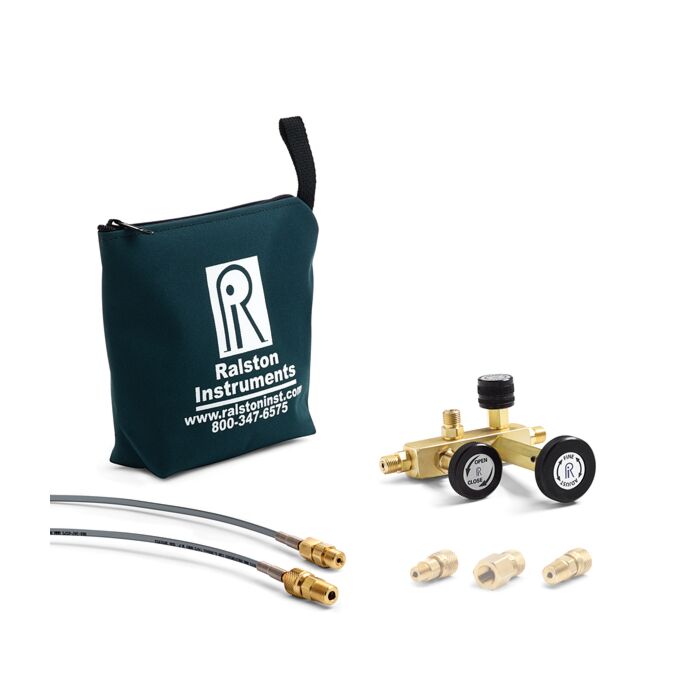

Includes:
- Assembly - QTCM Assembly (QTCM)
- Gauge Adapter - 1/4" male NPT x female Quick-test, no check-valve, brass (QTHA-2MBA)
- Hose - Quick-test 6900 PSI hose, brass hose ends, 20 ft (6.10 m) long (QTQT-HOS-20ft)
- Hose - Quick-test 6900 PSI hose, brass hose ends, 2 ft (61 cm) long (QTQT-HOS-2ft)
- Hose Adapter - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
- Hose Adapter - 1/4" male NPT x male Quick-test, no check-valve, brass (QTHA-2MB0)
