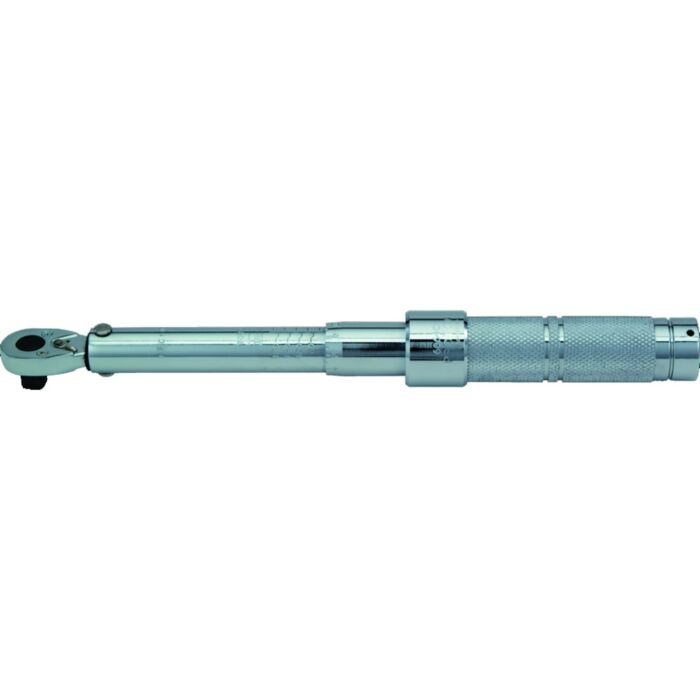

Proto Tools J6014C

Product Highlights

• Calibrated to +/- 4% in clockwise direction and +/- 6% in counter clockwise direction.
• Calibration is accomplished by mechanical loading of each wrench in a horizontal position, and performing a three click test at 20%, 60% and 100% of maximum instrument capacity.
• Certification documents traceable to N.I.S.T. (National Institute of Standards and Technology). CERT Version Only.
• Manufactured to meet precision/highly accurate applications such as military and aerospace.
• Drive Size [in] 1/2
• Increments [Ft Lbs] 1
• TorqueRange [Ft Lbs] 50-250
• Head Width 1 [In] 1-7/8
• Head Depth [In] 1-13/32
• Overall Length [in] 26-17/64
• Weight [Lbs] 5.90
• Repair Kit Part Number J6014RK
• Storage Case Part Number J6014PBF
• Style Micrometer
• Finish Full Polish
• Specification ASME ASME B107.14
• Specification TO TO33K6-4-2193-1
