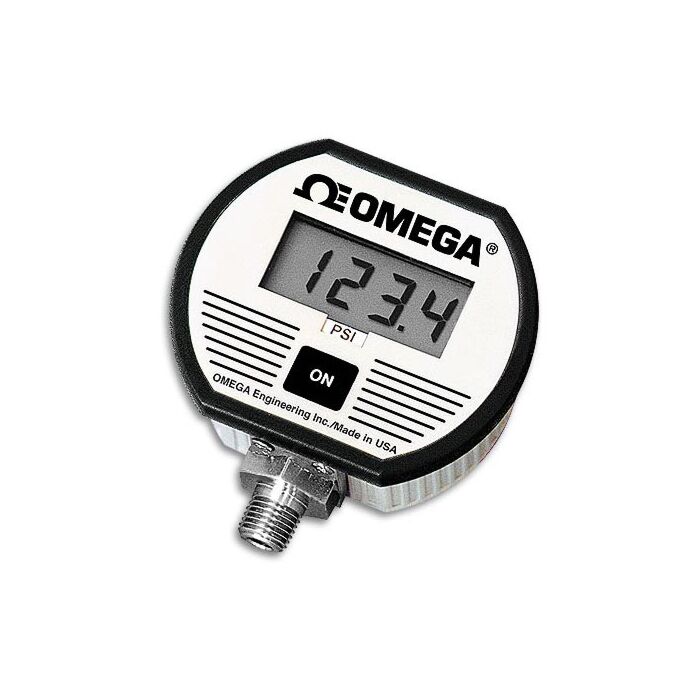

Omega Engineering DPG1000B

All DPG1000 models feature a large (½"/13 mm H) 3½ digit display in a rugged, splashproof extruded aluminum case. A 1/4 -18 NPT 316 stainless steel fitting is standard for the pressure connection. Media compatibility includes any liquids or gases compatible with 316 stainless steel. The DPG1000 features a wide operating temperature range of -20 to 85°C (-4 to 185°F). Many different standard pressure/vacuum ranges with both gauge and absolute references are available. The DPG1000 series also features ±0.25% accuracy, 2X overpressure and 4X burst specifications.

Product Highlights

• 0-30 psig
• Dual Alarm and Signal Alarm plus Analog Output
• ±0.25% Test Gauge Accuracy
• 316 Stainless Steel Wetted Parts
• Loop Test Function
• Easy-to-Read 3½ Digit LCD Display
• Pressure or Vacuum Applications
• Rugged Extruded Aluminum Case
