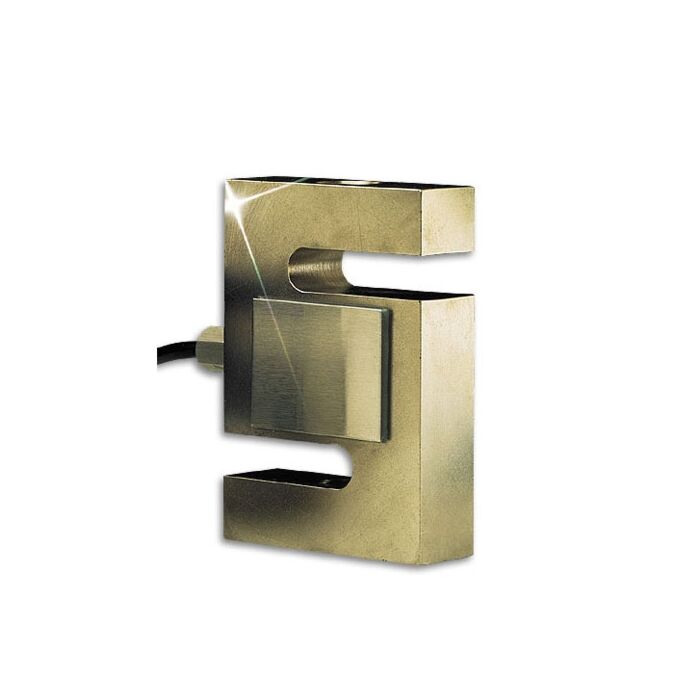

Omega Engineering LCCA-1K

Product Highlights

• S Beam load cell with 1,000 lb capacity
• Environmentally Protected for Washdown Applications
• Corrosion Resistant
• Calibration Certificate Supplied
• 0.25% Interchangeable
• Rated Output: 3mV/V ±0.0075mV/V actual output supplied with each load cell)
• Excitation: 10 Vdc (15 Vdc maximum)
• Accuracy: 0.037% Full Scale
• Linearity: 0.03% FS
• Hysteresis: 0.02% FS
• Repeatability: 0.01% FS
• Zero Balance: 1% FS
• Creep in 20 min: 0.03% FS
• Operating Temperature: 0 to 150°F
• Compensated Temperature: 0 to 150°F
• Thermal effects: Zero - 0.0015% FS/°F Span - 0.0008% RDG/°F
• Maximum Load: Safe, 150%; Ultimate, 300%
• Bridge Resistance: 350 Ohms nominal
• Full Scale Deflection: 0.010 in to 0.020 in
• Construction: Nickel Plated Carbon Steel
• Cable: 20 ft 4-conductor shielded 22-gage wire
