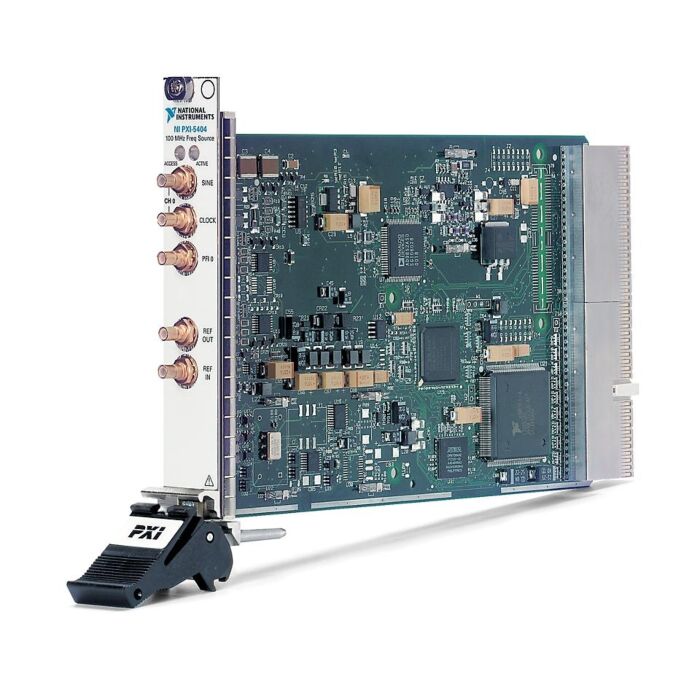

Used National Instruments PXI-5404 PXI Waveform Generator

The PXI‑5404 is a 100 MHz clock generator capable of generating clock and sine wave signals and some other standard functions. This clock generator can generate signals from -1 V to +1 V and uses direct digital synthesis (DDS) to precisely generate waveforms.

100 MHz Bandwidth, 12-Bit PXI Waveform Generator

• One channel updated at 300 MS/s sampling rate
• 1 Vpk-pk to 4 Vpk-pk sine amplitude
• 9 kHz to 105 MHz sine wave generation
• DC to 105 MHz clock generation
• 1.07 µHz frequency resolution

Conditions

Specifications are valid under the following conditions unless otherwise noted:

• Ambient temperature range of 0 °C to 50 °C
• Output voltage amplitudes with a 50 Ω load
• SINE out voltage amplitude of 2 Vpk-pk with a 50 Ω load
• CLOCK out level of 5 V
• External calibration performed between 18 °C and 28 °C

Typical specifications were determined on a small sampling of PXI-5404 waveform generators.
