Monarch Instrument 6125-011

Monarch Instrument 6125-011

Order # 6125-011 | Mfg # 6125-011

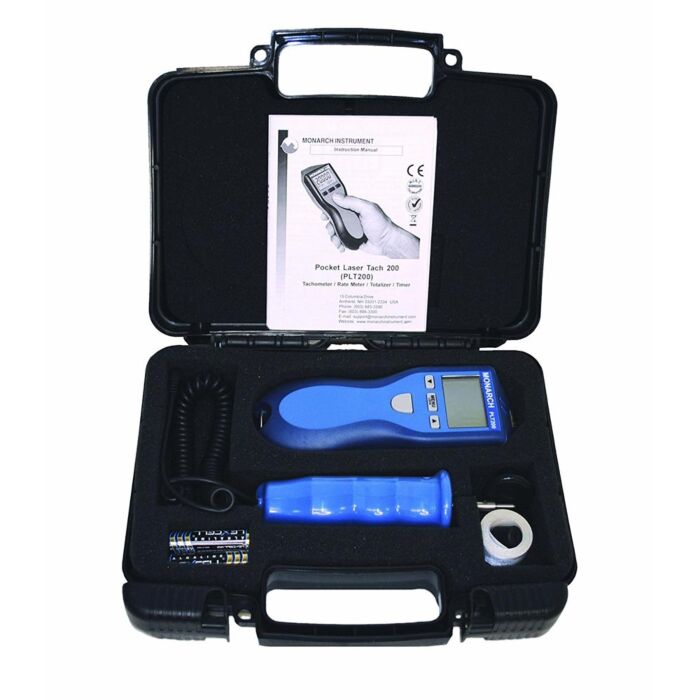

Monarch Instrument 6125-011: Pocket Laser Tach 200 Kit (PLT200)

$566.28

In stock

Log in for Member Pricing

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Monarch Model # PLT200 Kit
Operating Range up to 25 feet* (Class 3R visible laser)
Accepts Remote Contact Assembly (optional)
Accepts Remote Sensors (optional)
TTL Pulse Output with 6 foot BNC Cable
Auto Ranging/Fixed Decimal (user selectable)
English and Metric Rates
Tripod Mounting Bushing
On-Target and Low Battery Indicators
Rugged Rubberized Housing
Weight: 7 oz. (210 g)

Each Unit Includes

Tachometer
RCA
Carrying Case
NIST Traceable certificate
5ft Roll of T-5 Reflective Tape

Technical Resources

Monarch Instrument Pocket Laser Tach 200 Datasheet

Specifications

Noncontact range	5 to 200,000rpm
Contact range	0.5 to 20,000rpm
Noncontact accuracy	+/-0.01%
Contact accuracy	+/-0.05%
Resolution	0.001 to 10rpm
Operating distance	2 inches to 25 feet
Display	5 digits
Working temperature range	5 to 40 degrees C (40 to 105 degrees F); 80% RH up to 31 degrees C (88 degrees F)
Power	(2) AA batteries
Dimensions	6.92 x 2.4 x 1.6 inches (H x W x D)
Weight	210g/7 oz.
