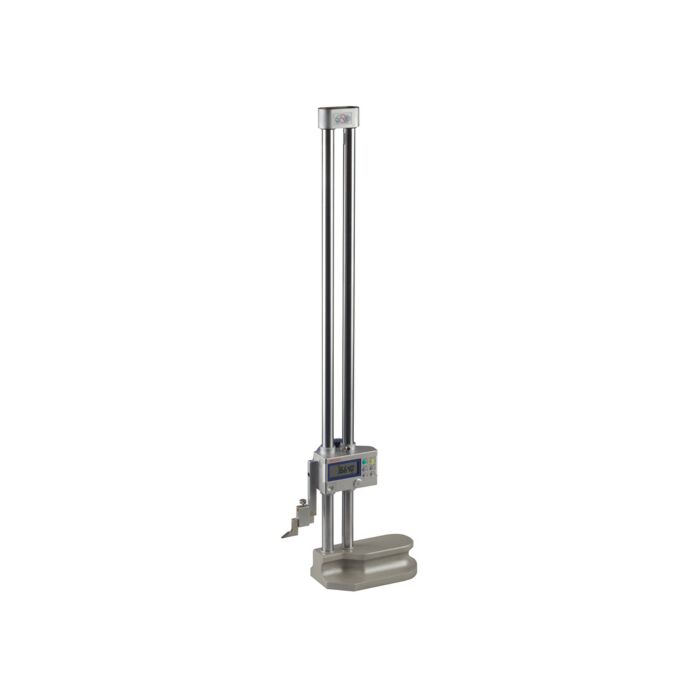

Mitutoyo 192-631-10

Mitutoyo 192-631-10 Digimatic Height Gage

Order # 192-631-10

Mfg # 192-631-10

call-regular 800-828-1470
Save 8%
$3,918.20
$3,604.74
Loading...
Loading...
  • Overview

Mitutoyo 192-631-10 Digimatic Height Gage

Order # 192-631-10 | Mfg # 192-631-10
Save 8%
$3,918.20
$3,604.74
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Easy-to-use standard type
  • Carbide-tipped scriber is provided
  • Double-column structure ensures high measuring accuracy
  • Coarse/fine feed switching
  • Measuring Range 0-24in 0-600mm
  • Accuracy .002
  • Resolution .0005in 0.01mm
  • Mass 9.5kg
  • Display: LCD, 6-digit
  • Max. response speed: 500mm/s
  • Battery: CR2032 lithium (1 pc.), 05SAA217
  • Battery life: Approx. 2000 hours under normal use
  • Zero-setting, ABS/INC switching, Presetting, Probe tip diameter compensation, -/+ switching
  • Power ON/OFF, Data hold
  • No Output, inch/mm conversion (inch/mm models)
  • Alarm: Low voltage, Counting value composition error
