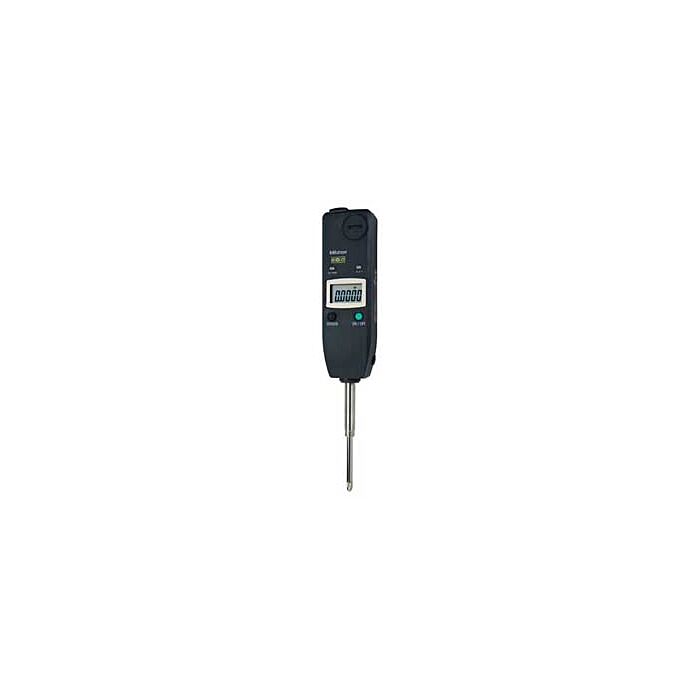

Mitutoyo 575-122 Digimatic Indicator, 0-1"

Mitutoyo 575-122 Digimatic Indicator, 0-1"

Order # 575-122

Mfg # 575-122

call-regular 800-828-1470
Save 4%
$361.79
$347.31
Loading...
Loading...
  • Overview

Mitutoyo 575-122 Digimatic Indicator, 0-1"

Order # 575-122 | Mfg # 575-122
Save 4%
$361.79
$347.31
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Range 0-1in 0-25.4mm
  • Resolution .0005in 0.01mm
  • Accuracy .0008in
  • Measuring Force 1.8N or less
  • Stem Diameter 5/16in
  • Remarks M2.5x0.45 Thread ISO/JIS type
  • Accuracy: Refer to the list of specifications.
  • Resolution: 0.01mm or .0005"/0.01mm
  • Display: LCD
  • Length standard: ABSOLUTE electrostatic capacitance type linear encoder
  • Max. response speed: Unlimited
  • Measuring force: Refer to the list of specifications
  • Battery: SR44 (1 pc.), 938882
  • Battery life: Approx. 20,000 hours under normal use
  • Dust/Water protection level: IP42
  • Function
  • Origin-set, Zeroset, Counting direction switching, Power ON/OFF, Data output, inch/mm conversion
  • (on inch/metric models only)
  • Alarm: Low voltage, Counting value composition error, Over-flow error
