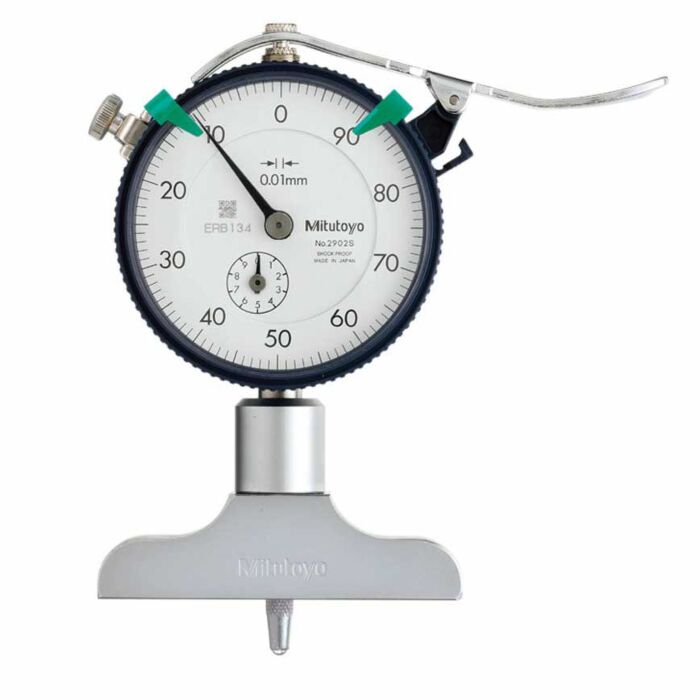

Mitutoyo 7218A Dial Type Depth Gage

The Mitutoyo dial depth gage features a redesigned white dial face that is quick and easy to read measurements in fine units. The included extension rods allow for measurements up to 200mm/8”. The contact point for the depth gage is carbide tipped and its bottom surface is hardened, ground and lapped for better precision and wear resistance. Some models have a back-plunger type dial for upward-facing readings and a needle probe.

• Units: Inch
• Measuring Force: 2.5N / 2.5N
• Range: 0-8"
• Graduation: 0.001"
• Accuracy: +/-0.002"
• Flatness of reference surface base: 5um / 0.0002"
• Stroke: 1"
• Extension rods: 1, 2, 4
• Base size: 2.5 x 0.63"
• Available in Metric and Inch models
• Choose between carbide-tipped ball point and needle point measuring rods
• Lock screw holds the slider in position for accurate measurement
• Supplied with a fitted plastic case
