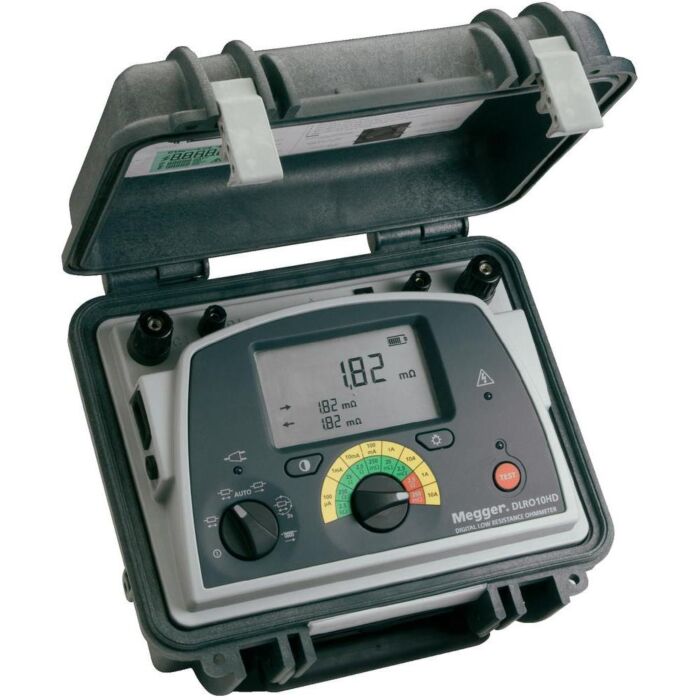

Megger DLRO-10HD Wind Kit Low Resistance Ohmmeter Wind Kit
Low Resistance Ohmmeter Wind Kit

Order #: DLRO-10HD-WKIT

Mfg #: DLRO-10HD KIT

Questions about availability or need help? Contact Us:

(800) 633-0561
$10,972.71

Megger DLRO-10HD Wind Kit Low Resistance Ohmmeter Wind Kit

Low Resistance Ohmmeter Wind Kit

Order #: DLRO-10HD-WKIT

Mfg #: DLRO-10HD KIT

$10,972.71
Be sure to Login to transcat.com for preferred member pricing.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Product Highlights

Augmenting Megger’s DLRO10 and 10X range the DLRO10HD combines ultimate simplicity of operation with a rugged IP65 case designed for stable ground and bench operation. The DLRO10HD measures low resistance values in applications ranging from railways and aircraft to resistance of components in industry. It is well suited to measuring thick conductors, bonds and quality of welding because of its 10 A range for resistance values up to 250 mΩ.

The included 1000-809 lead set is intended to measure the resistance of the lightning protection circuit of a wind turbine, either in part in a production environment, or fully assembled during commissioning, maintenance, or following repair. This lead set is designed to be connected to any instruments in the Megger 10 A DLRO range or the Megger BT51. However, for outside use the DLRO10HD is recommended due to it robustness and high IP rating.

  • High or low output power selection for condition diagnosis
  • Rechargeable battery or line power supply, continuous operation, even with dead battery
  • 10 A for 60 seconds, less time waiting to cool, great for charging inductance
  • High input protection to 600 V, inadvertent connection to line or UPS voltage will not blow a fuse
  • Heavy duty case: IP 65 lid closed, IP54 operational (battery operation only)
  • Rotary switch selects one of five test modes, including auto start on connection, giving ease of use
  • Equally at home in the laboratory, the workshop or in the field, on the bench or on the ground, Megger’s new heavy duty DLRO10HD low resistance ohmmeter combines rugged construction with accuracy and ease of use
  • It features an internal rechargeable battery and can also operate from a mains supply, even if the battery is completely flat
  • Wind Turbine Lightning Protection Test Lead Set
  • Megger DLRO Booklet

Each Unit Includes

  • DLRO-10HD
  • DH4 duplex handspike 1.2m
  • Test lead pouch (lid mounted)
  • DLRO10HD user guide CD
  • Warranty book
  • Wind Turbine Lightning Protection Test Lead Set
  • Megger DLRO Booklet
