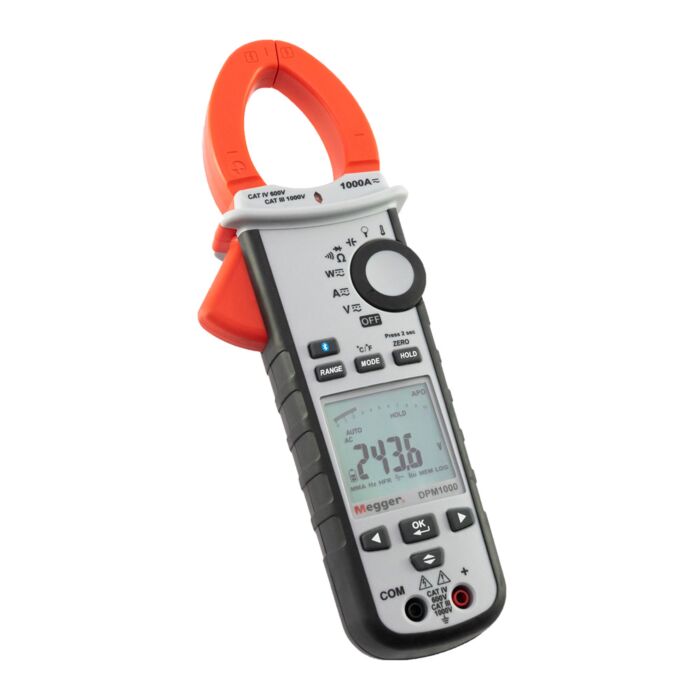

Doble-Megger DPM1000 Power Clamp Meter

Product Highlights

• AC/DC voltage to 1000 V
• AC/DC current to 1000 A
• True RMS
• Resistance 100 kΩ
• Bluetooth link to the Megger Link app
• Phase rotation indication

The new Megger DPM1000 power clamp meter combines the functionality of power meter, harmonics meter and data logger in one easy-to-use package. The design meets the requirements of BSEN 61010-1 CAT IV 600 V for supply side applications. A large, backlit LCD clearly displays all measurements that can be selected at the touch of a button or when rotating the selection dial. It also automatically switches off to save battery consumption.

The DPM1000 can measure DC, AC, pulsed and mixed currents up to 1000 A simply by clamping the jaws around the appropriate conductor, whilst voltages up to 1000 V AC or DC may be measured by the supplied test leads. Where power measurements are to be made, both techniques above are performed simultaneously.
