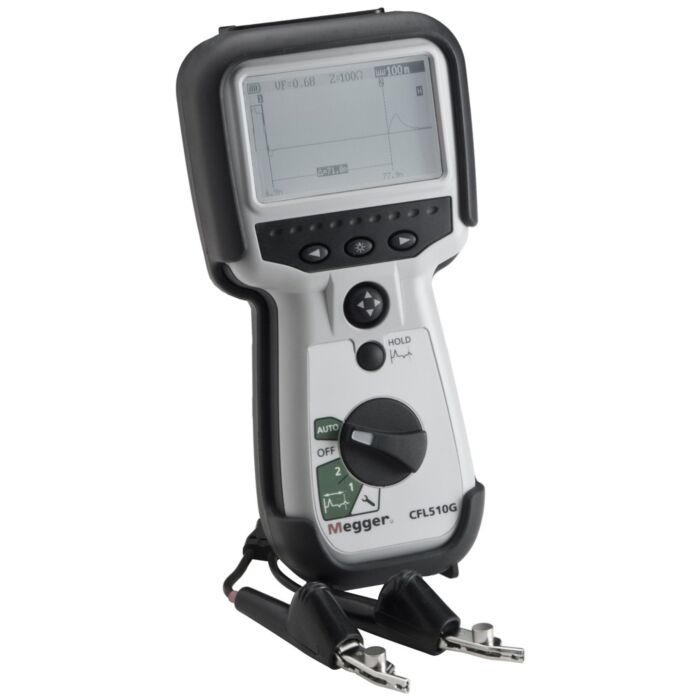

Megger CFL510G Hand-Held Time Domain Reflectometer
Hand-Held Time Domain Reflectometer

Order #: 1001-790

Mfg #: 1001-790

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,878.00

Megger CFL510G Hand-Held Time Domain Reflectometer

Hand-Held Time Domain Reflectometer

Order #: 1001-790

Mfg #: 1001-790

$3,878.00
The Megger CFL510G Hand-held Time Domain Reflectometer is ideal for locating faults on metallic telephone, CATV and power cables. It is equipped with four output impedances (25, 50, 75, & 100 Ω) and has a velocity between 0.2 and 0.99 which will meet any cable test requirements.

Be sure to Login to transcat.com for preferred member pricing.
Availability:
In stock
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Simple to Operate
  • Auto Set-up for Instant Use
  • Ultra Fast Pulse for Near-End Fault Identification
  • Designed for Use on all Metallic Cable Pairs
  • Dual Cursors Allow Complete Flexibility, Giving the User Full Control and Instant Indication of Distance Between Two Points
  • A Unique, Easy One-Button Press and HOLD Feature Allows Comparison Between Cable Conditions
  • Extra High Resolution, a White-Light Backlight, and Grayscale Tones Gives a Vibrant Graphical Display, Useful in Identifying Key Events on the Trace
  • Resolution to 0.1 m
  • For Use on Telecom TNV-3 Circuit or 150 V CATIV Power Circuit
  • Power Blocking Filter not Required
  • Environmental Protection to IP54
  • Auto Selected Output Impedance (Between 25, 50, 75 and 100 ohms)
  • 2 ns Pulse for Near-End Fault Location
  • AUTO Option Selecting Gain and Pulse for Each Range
  • Display Distance in Meters or Feet

Each Unit Includes

  • Hard carrycase
  • Miniature clip test lead set
  • User guide CD
