Keysight Technologies E4412A For Rent

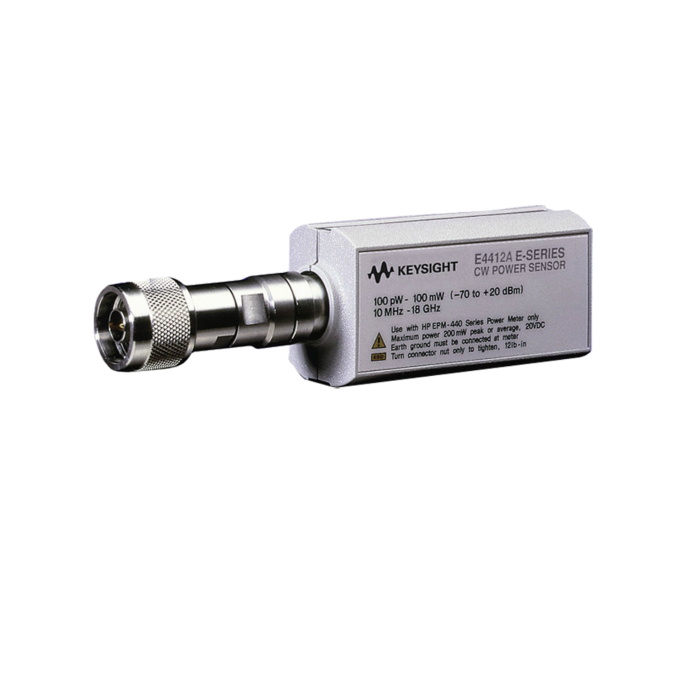

Keysight E4412A for Rent, Wide Dynamic Range Power Sensor, 10 MHz to 18 GHz

Order # E4412A-RENT2

Mfg # E4412A

call-regular 800-828-1470
$0.00
  • Overview

Keysight E4412A for Rent, Wide Dynamic Range Power Sensor, 10 MHz to 18 GHz

Order # E4412A-RENT2 | Mfg # E4412A

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Keysight E4412A Highlights

The E4412A CW diode power sensor measures average power over the frequency range 10 MHz to 18 GHz and power range -70 to +20 dBm (90 dB dynamic range).

  • Fast measurement speed, up to 400 readings per second with the E4416A
  • Wide dynamic range (-70 dBm to +20 dBm)
  • Calibration factors, linearity ana temperature compensations data stored in EEPROM
  • Excellent SWR for reducing mismatch uncertainty
  • Accurate calibration and traceability to NIST
  • Compatible with EPM (new N1913A/ 14A, E4418B/ 19B), EPM-P (E4416A/ 17A) and P-series (N1911A/ 12A) power meters
