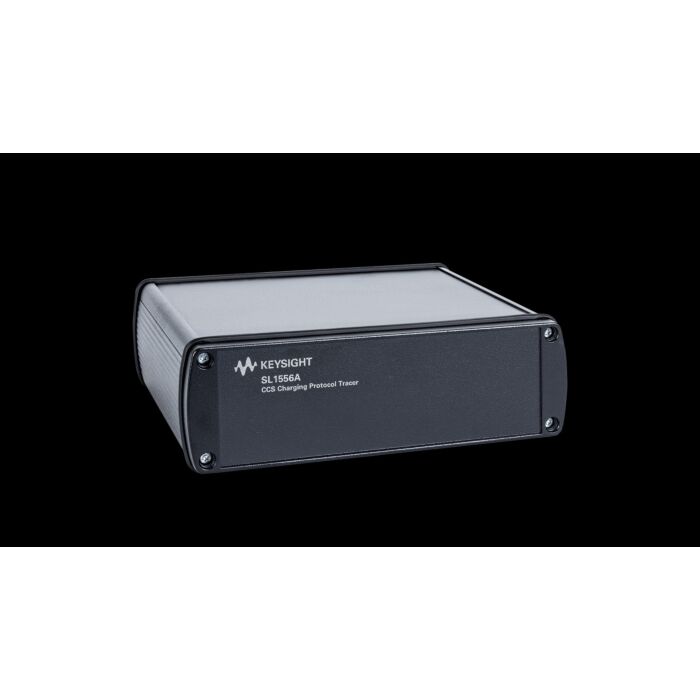

Keysight SL1556A for Rent, CCS Charging Protocol Tracer

Product Highlights

The Keysight SL1556A CCS Charging Protocol Tracer (CCS Tracer) enables seamless observation of the CCS communication channel between a charging station (EVSE) and an electric vehicle (EV). In combination with SL1487A CCS Charging Protocol Trace Viewer (CPT), you can analyze the over-the-wire communication traffic, which is communicated via HomePlug Green PHY Powerline Communication (HP GP PLC) on the Control Pilot (CP) Line.

Features

• Easy analysis of CCS charging communication
• Wide range of supply voltage from 6 to 48 V DC
• Small size for optimum use directly on the EV or EVSE
• Seamless observation of the communication between the EV and EVSE
• Flexible operating modes: non-invasive test interface for direct coupling or optional Inductive Cable Clamp for inductive coupling
