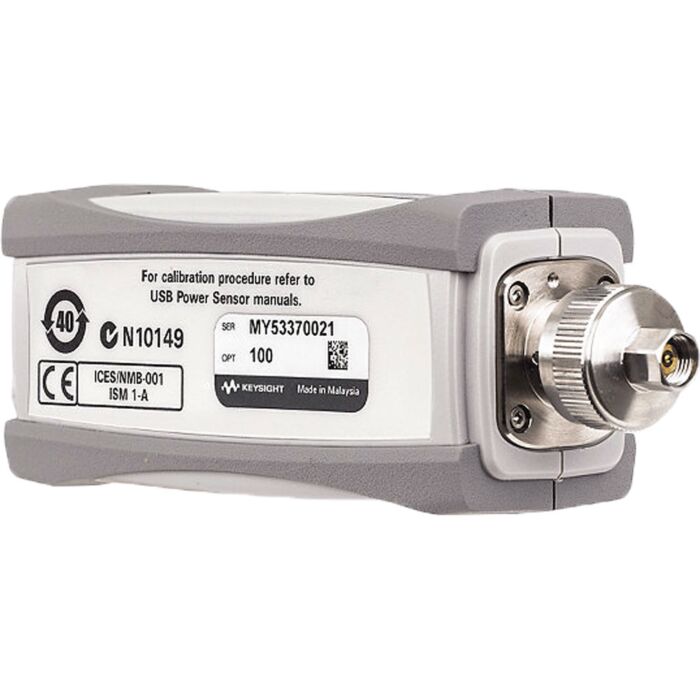

Keysight U8487A
Power Sensor,USB Averare T/C 10MHz-50GHz
Order #: U8487A
Mfg #: U8487A
$10,532.00
Product Highlights
- Frequency range of 10 MHz to 50 GHz
- Fastest measurement speed for thermocouple sensor, > 900 readings/s (free run/fast buffer mode)
- Best-in-class power linearity of less than 0.8%
- Wide dynamic range from -35 dBm to +20 dBm
- Real time measurement uncertainty (MU) feature
- S-parameter and gamma correction function
- Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) or National Physical Laboratory (NPL)
- BenchVue software enabled
- Includes BV0007B Power Meter app
