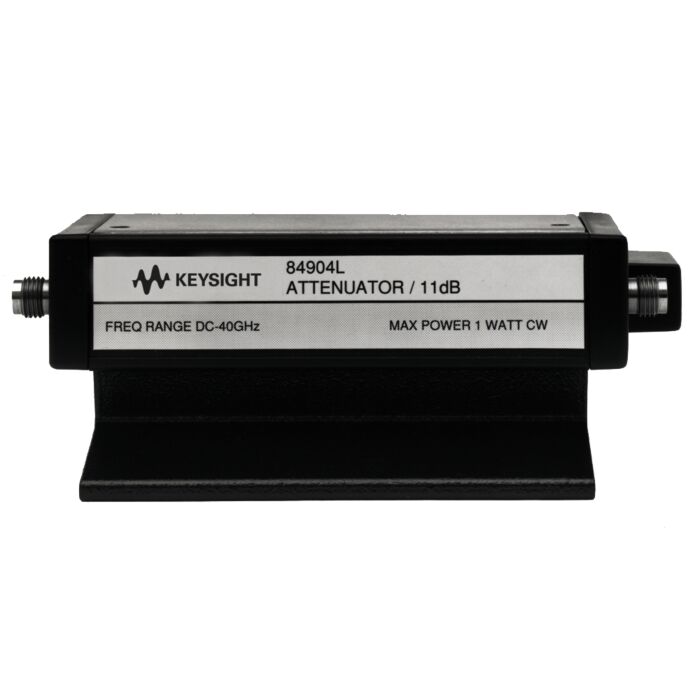

Keysight 84904L Programmble Attenuator, 40GHz, 11dB, 1dB Steps
Programmble Attenuator,40GHz 11dB,1dB Steps
Order #: 84904L
Mfg #: 84904L
$8,093.00
Keysight 84904L Programmble Attenuator, 40GHz, 11dB, 1dB Steps
Programmble Attenuator,40GHz 11dB,1dB Steps
Order #: 84904L
Mfg #: 84904L
$8,093.00
Availability: Ships in 4-6 weeks
Product Highlights
- Frequency range: dc to 40 GHz
- Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
- Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 34 GHz, 1.8 to 40 GHz
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
- Maximum RF input power: 1 W (average), 50 W (peak) Connector type: 2.4 mm female, optional 2.4 mm/2.92 mm male/female
- Programming connector: 10-pin sockets
