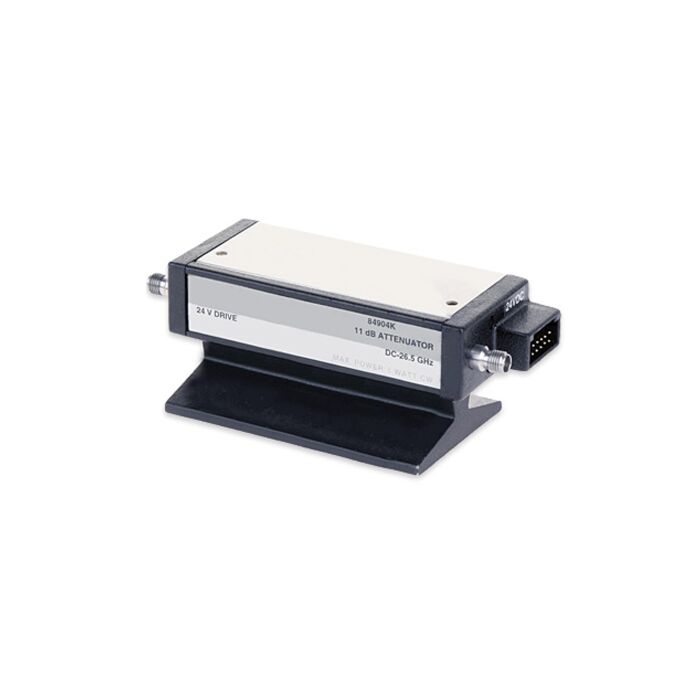

Keysight 84904K Programmable 1db-Step Attenuator, 11dB, 26GHz
Programmable 1db-Step Attenuatr 11dB,26GHz

Order #: 84904K

Mfg #: 84904K

Questions about availability or need help? Contact Us:

(800) 633-0561
$6,145.00

Keysight 84904K Programmable 1db-Step Attenuator, 11dB, 26GHz

Programmable 1db-Step Attenuatr 11dB,26GHz

Order #: 84904K

Mfg #: 84904K

$6,145.00
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Frequency range: dc to 26.5 GHz
  • Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
  • Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 26.5 GHz
  • Repeatability life: 0.03 dB maximum
  • 5 million cycles per section
  • Maximum RF input power: 1 W (average), 100 W (peak)
  • Connector type: 3.5 mm female, optional 3.5 mm male/female
  • Programming connector: 10-pin sockets
  • DC to 26.5 GHz, DC to 40 GHz
  • frequency coverage
  • Optional calibration data
  • 0 to 11 dB, 70 dB, 90 dB
  • 1 dB steps, 10 dB steps
  • Excellent repeatability
  • High accuracy
  • Excellent reliability, long life
  • Exceptionally low insertion loss
