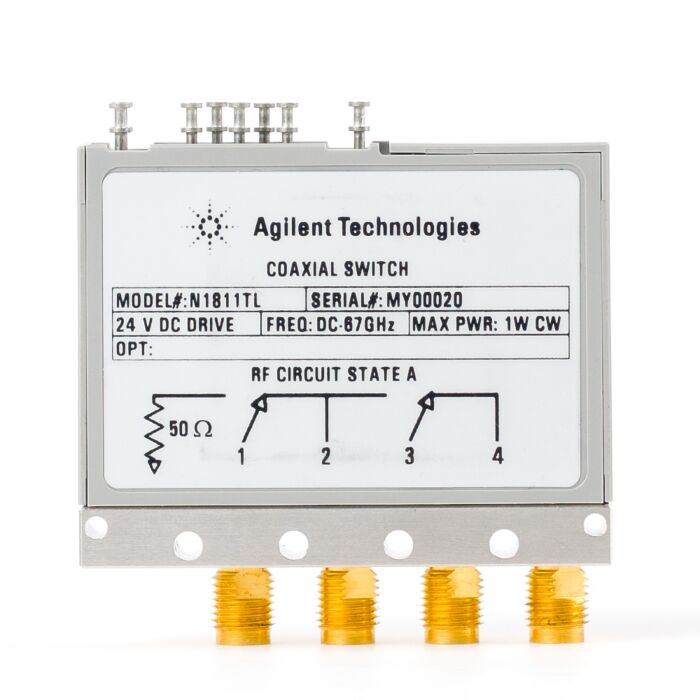

Keysight N1811TL Coaxial Switch, 4-Port Terminated Latching with Current Interrupt

Product Highlights

• Terminated 4-port bypass switch
• Female SMA/2.92 mm/2.4 mm and 1.85 mm connectors
• Built-in current interrupt
• Superior isolation: > 120 dB at 4 GHz and 70 dB at 67 GHz
• Low SWR: < 1.10 at 4 GHz and 1.90 at 67 GHz
• Low insertion loss: < 0.27 dB at 4 GHz and 1.12 dB at 67 GHz
• Excellent insertion loss repeatability: 0.03 dB at 40 GHz, 0.05 dB at 50 GHz and 0.08 dB at 67 GHz
• Long operating life of 5 milliion cycles guaranteed, 10 million cycles typical
• Coil voltage levels 5 V, 15 V or 24 V
• D-subminiature 9-pin connectors or solder lug terminals
• Standard or TTL/5 V CMOS compatible drive
• Optional position indicators
