Four outputs - 160 W / 32 V / 10 A per channel, a total of 400 W
Auto Series to 128 V; Parallel to 40 A with the optional Series and Parallel Kit
Low output ripple and noise
Accurate programming/readback capability
Tariff fees or manufacture imposed surcharges may be applicable.
This product is available for shipping to the United States and Canada only.
Overview

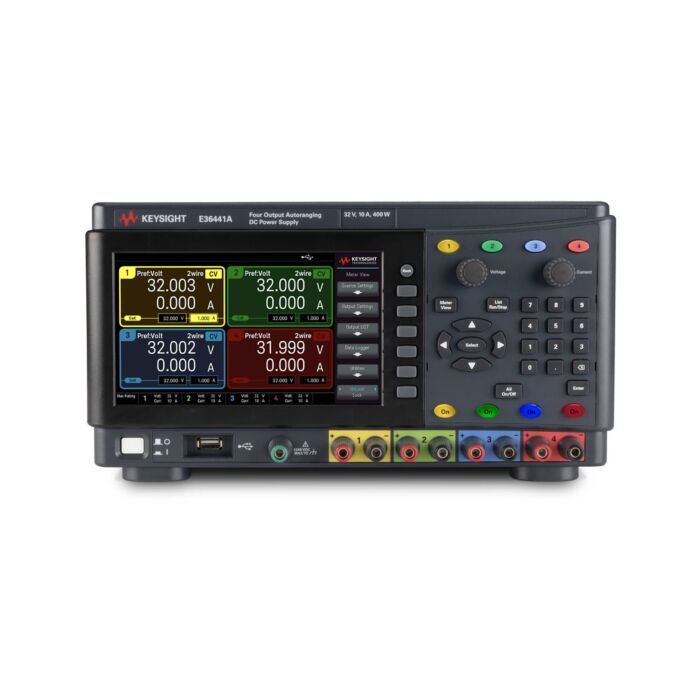

Keysight DC power supplies have changed how engineers prove their design and ensure product quality for over fifty years. The E36441A four-output autoranging bench power supply is ready for your next design. With accurate voltage / current measurement and device protection layers, you can test with confidence and power your next insight.
Four outputs - 160 W / 32 V / 10 A per channel, a total of 400 W
Auto Series to 128 V; Parallel to 40 A with the optional Series and Parallel Kit
Low output ripple and noise
Accurate programming/readback capability
Fast transient response, command processing, and up / down program speed
two-wire or four-wire remote sense
Over-voltage, over-current, and over-temperature protection
Seven-inch Liquid Crystal Display (LCD) color display
Numerical keypad for precise output setting
Color-coded channels
Individual knobs for voltage and current
Built-in data logger, output sequencing, LIST mode, output tracking, and adjustable voltage slew rate
Front and rear output terminals
LAN and USB connectivity
PathWave BenchVue power supply application software
Each Unit Includes
AC power cord
Four 5.08 mm female four-pin terminal block connectors
One 3.5 mm four-pin female terminal block digital IO connector
