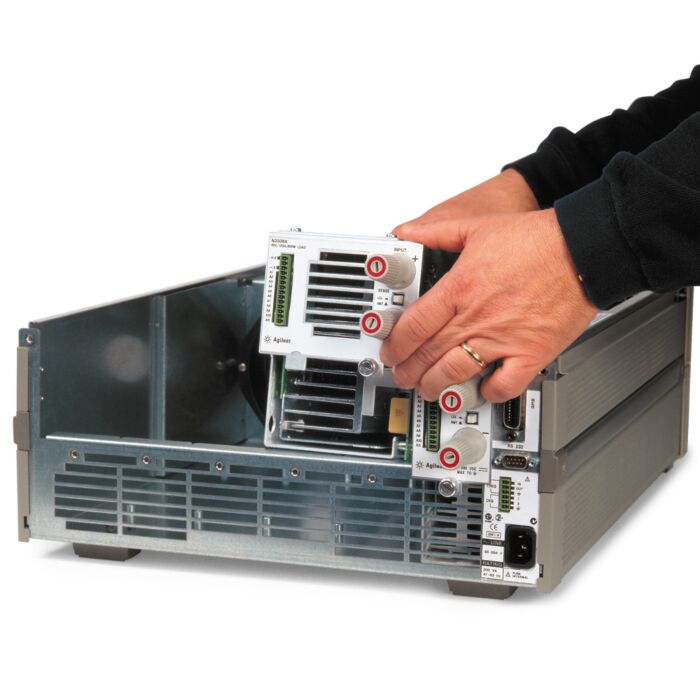

Keysight N3302A Electronic Load Module, 0-60V, 30A, 150 with N330X Mainframes, 1Slot

Product Highlights

• Current: 0 - 30 A
• Voltage: 0 - 60 V
• Maximum Power @ 40°C: 150 W
• Typical Minimum Operating Voltage @ Full Scale Current: 1.2 V
• Low Range/High Range: 3 A/30 A
• Regulation: 10 mA
• Low Range Accuracy: 0.1% + 5 mA
• High Range Accuracy: 0.1% + 10 mA
• Low Range/High Range: 6 V/60 V
• Regulation: 5 mV
• Low Range Accuracy: 0.1% + 3 mV
• High Range Accuracy: 0.1% + 8 mV
• Range 1 (I >10% of current rating): 0.067-4 Ω
• Range 2 (I >1% of current rating): 3.6-40 Ω
• Range 3 (I >0.1% of current rating): 36-400 Ω
• Range 4 (I >0.01% of current rating): 360-2000 Ω
