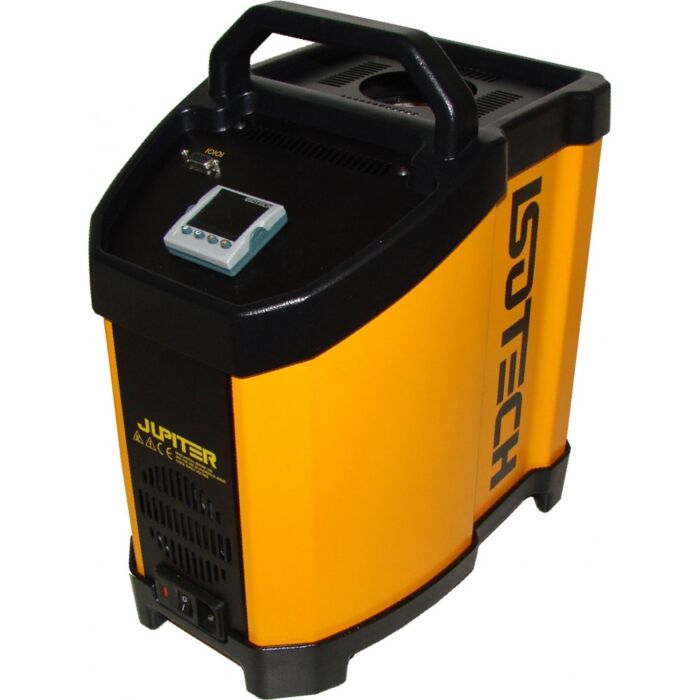

Isotech 4852 BASIC
Dry Block Calibrator 35C to 660C

Order #: JUPITER 4852 BASE

Mfg #: JUPITER 4852 BASE

Questions about availability or need help? Contact Us:

(800) 633-0561
$9,122.40

Isotech 4852 BASIC

Dry Block Calibrator 35C to 660C

Order #: JUPITER 4852 BASE

Mfg #: JUPITER 4852 BASE

$9,122.40
The Jupiter Dry Block range offers industry-leading performance in an easy to use portable package - ideal for the calibration of thermocouples and platinum resistance thermometers. It has been designed for fast heating and cooling for convenient field use. For flexibility surface sensor and infrared thermometer accessories can be added.
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • 30°C to 660°C. 35 x 160mm Volume
  • Fast Response
  • Calibrate Whole Measurement Loop
  • Stability ±0.015°C @ 100°C ±0.025°C @ 650°C
  • Display Resolution 0.01°C over whole range
  • Input Channel Accuracy: Thermocouple E, J, K, N: ±0.2°C @ 660°C R: ±0.6°C S: ±0.7°C @ 660°C T: ±0.2°C @ 150°C
  • CJC Accuracy ±0.35°C
  • Input Channel Accuracy: RTD ±0.05°C ±0.005% RDG
  • Blackbody Source ±0.3°C
  • Surface Sensor Calibrator ±0.5°C
  • Cools from 650°C to 150°C in 60 minutes
  • Heats from 30°C to 650°C in 20 minutes
  • Calibration Volume 35mm diameter by 148mm deep
  • Standard Insert 6 pockets, 2 x 4.5mm, 2 x 6.4mm, 1 x 8.0mm, 1 x 9.5mm diameter, all 140mm deep
  • Indiactor Units °C, °F, K
  • Power 115Vac or 230Vac 50/60Hz 1000 Watts
  • Dimensions 384H (including handle) x 212W x 312D mm
  • Weight 8.5kg
