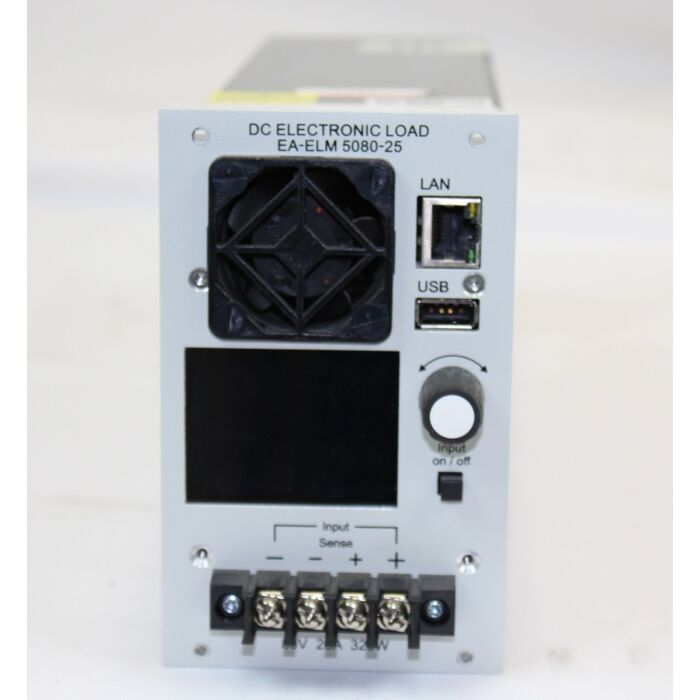

Intepro ELM5080-25 for Rent, Multichannel DC Load with Energy Recovery, 80V/25A/320W
Multichannel DC Load w/Energy Recovery,80V/25A/320W

Order #: ELM5080-25-RENT2

Mfg #: ELM5080-25

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Intepro ELM5080-25 for Rent, Multichannel DC Load with Energy Recovery, 80V/25A/320W

Multichannel DC Load w/Energy Recovery,80V/25A/320W

Order #: ELM5080-25-RENT2

Mfg #: ELM5080-25

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
Availability:
In stock
This item is available USED at
$1,328.67
Shop now

DC Load Modules

The load modules come in two voltage variants, 80 V and 200 V, and incorporate the common regulation modes, constant voltage (CV), constant current (CC) and constant power (CP). Both modules have a max. power of 320 W, while the 80 V module can take up to 25 A and the 200 V module can take up to 10 A. By installing up to 10 units of these load modules into a single rack it is possible to extend the power to 3200 W max.

Front Panel Control

The LCD touch panel offers a modern and intuitive user interface for controlling the four operating modes, Constant Voltage (CV), Constant Current (CC), Constant Power (CP) and Constant Resistance (CR).

Equipped with Ethernet

Equipped with an Ethernet port by default, the ELR 5000 load units can be easily integrated into a network of LAN devices. External control is possible via an included Windows software package or via custom applications created in LabView or other IDEs. The commonly known communication protocols SCPI and ModBus are supported.

Regenerative back to the grid

The energy recovery function inverts the supplied DC energy into a synchronous sine wave current and feeds it back into the local grid. This reduces the usual heat dissipation to a minimum and saves energy costs at the same time. This important feature of these electronic loads is that the AC input, i.e. grid connection, is also used as output for the recovery of the supplied DC energy, which will be converted with an efficiency of approximately 90%. This way of energy recovery helps to lower energy costs and avoids expensive cooling systems, such as required for conventional electronic loads which convert the DC input energy into heat.
