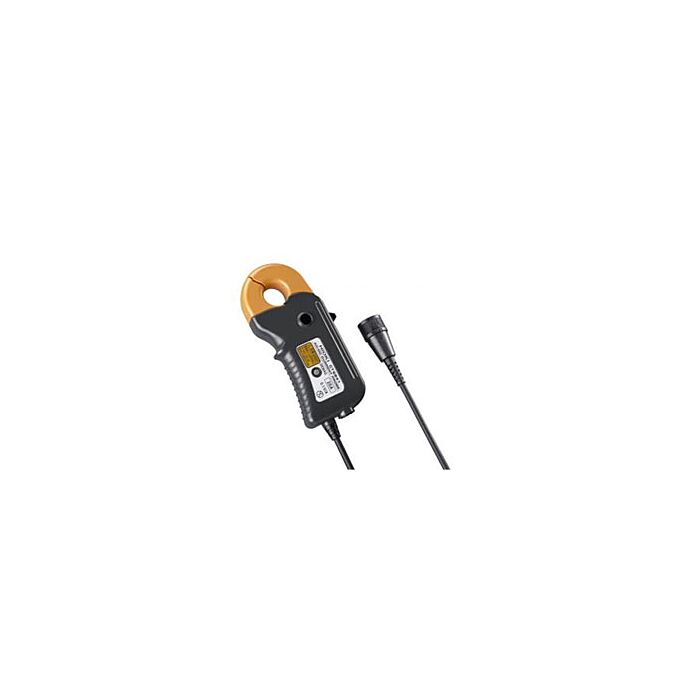

Hioki CT6841 AC/DC Current Probe (20A DC-1MHz)

Order # CT6841

Mfg # CT6841

800-828-1470

$2,658.37

Hioki CT6841 AC/DC Current Probe (20A DC-1MHz)

Order # CT6841 | Mfg # CT6841

$2,658.37

Ships in 3-4 weeks

Hioki products are available to ship to customers in the United States only.

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Puerto Rico only.

Overview

Hioki AC/DC clamp sensors are best-in-class current sensors for use with power meters, Memory HiCorders and high performance oscilloscopes.
Ideal for use in environmental testing with broad -40˚C to 85˚C temperature range
High precision with a clamp-type design, ±0.3% amplitude accuracy, ±0.1° phase accuracy
Wide-bandwidth DC to 1 MHz (CT6841), DC to 500 kHz (CT6843)
Single-handed operation and robust locking mechanism
Reduced effects from magnetic fields, conductor position, and noise from nearby wires
For EV/HEV battery charge and discharge efficiency measurement and inverter and power conditioner conversion efficiency evaluation

Hioki AC/DC Current Probe CT6841/CT6843 Datasheet
