HD Electric DVM
Dual Stick Phasing Voltmeter w/Peak Hold Mode,5V-40kV

Order #: DVM-80UVM

Mfg #: DVM-80UVM

Questions about availability or need help? Contact Us:

(800) 633-0561
$3,396.75

HD Electric DVM

Dual Stick Phasing Voltmeter w/Peak Hold Mode,5V-40kV

Order #: DVM-80UVM

Mfg #: DVM-80UVM

$3,396.75

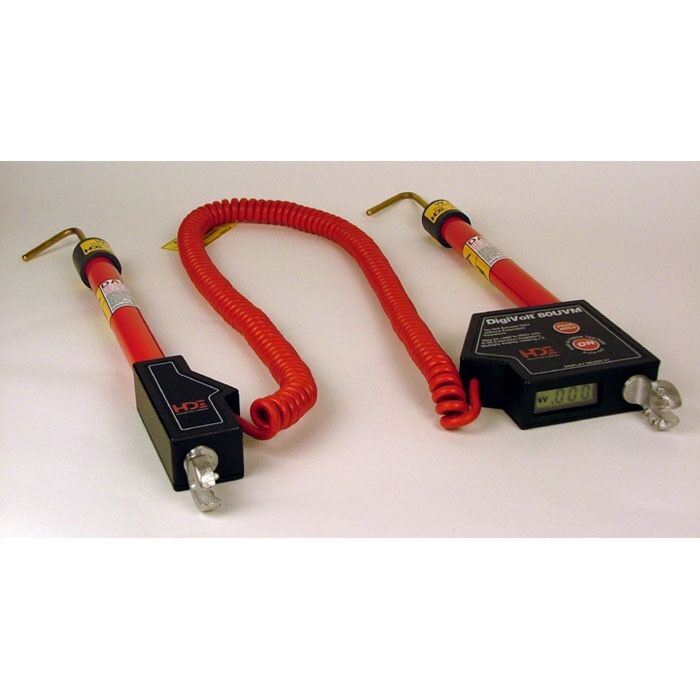

The DigiVolt® series of digital voltmeters and phasing sets is designed to take voltage measurements and perform phasing applications on system voltages up to 80kV. The DVM-80UVM is a compact, high accuracy dual stick voltmeter and phasing set with capacitive test point mode and peak hold. The DVM-80UVM measures voltage from 5V up to 40kV and up to 80kV with a pair of optional add-on resistors.
Availability: Ships in 2-3 weeks

Product Highlights

  • Peak Hold mode
  • Triple auto ranging 3.5 digit display - reads in kilovolts from 5 Volts to 80kV
  • Highly accurate, within 1% of the reading
  • Backlit display for easy reading in bright or dark conditions
  • Measures AC and DC voltages
  • Use on secondary voltages, starting at 5 Volts
  • Measure voltage on elbow test points, meter will display the system voltage
  • Test underground cables for faults
  • Auto shut-off
  • Powered by a 9V lithium or alkaline battery in an easy to change battery case - no tools required
  • Voltmeter weights 2.25 lbs.
