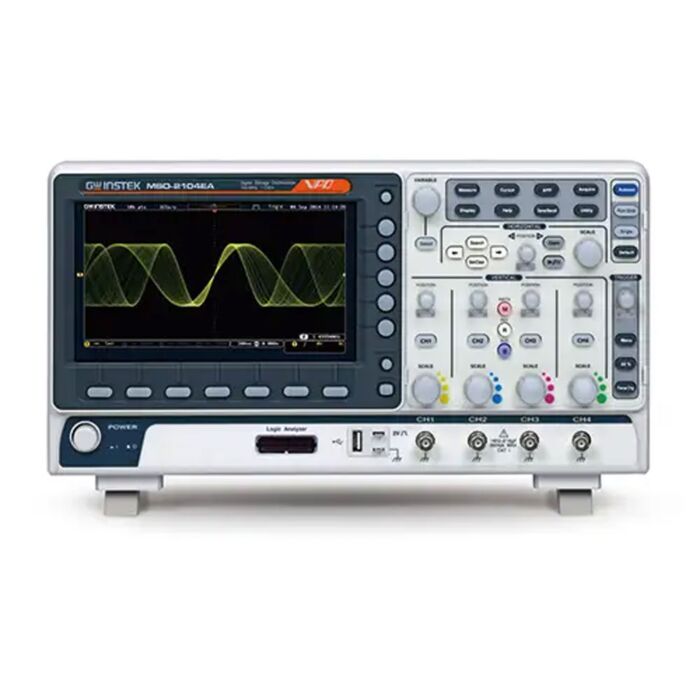

The Instek MSO-2102EA Mixed-Signal Oscilloscope offers 2 analog channels + 16 digital channels. The MSO2102EA has a built-in 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator. The oscilloscope features a bandwidth of 100MHz. The Dual analog channel models provide 1GSa/s real-time sampling rate per channel. The 8-inch 800*480 TFT LCD and the minimum 1mV/div vertical range allows the MSO-2102EA to measure complex feeble signals and clearly display measurement results.
For analog channels, the MSO2102EA provides 10M long memory for users to completely retrieve and analyze waveforms. Users, based upon the application requirements, can select 1k, 10k, 100k, 1M or 10M memory depth. Short memory depth collocating with the high sampling rate allows users to observe fast-changing waveforms and, on the other hand, long memory depth aims for continuously changing waveforms. The MSO-2102EA is equipped with waveform search and segmented memory functions to expand the flexible applications of 10M long memory. The segmented memory can be divided the maximum into 29,000 sections for users to bypass any unimportant waveforms so as to swiftly search all required waveforms. With the segmented memory function, more meaningful waveforms can be saved and target waveforms can be displayed rapidly. Users, by using the waveform search function, can rapidly search desired waveforms according to the required trigger conditions.
MSO-2102EA also provides the frequency response analysis function (Bode plot). The FRA software can be directly downloaded from GW Instek website. Via arbitrary waveform generator, oscilloscope, and FRA software, users can obtain DUT's FRA characteristic curve plot. FRA has a very wide application range, including product circuit and component performance verification and analysis such as Feedback of Circuit Design, Filter Design, Amplifier Design, Resonant Circuit Design, Cable Frequency Response, and Signal Transformer Performance. Via FRA, users can preliminarily verify product and analyze component's characteristics without the expensive instrument.
- Bandwidth: 100 MHz
- MSO-2000EA equips with a 16-channel logic analyzer and a dual channel 25MHz arbitrary waveform generator
- Real time Sampling rate for each channel is 1GSa/s (2-channel models);Maximum real time Sampling rate is 1 GSa/s (4- channel models)
- Maximum 10M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000 wfms/s
- 8 " WVGA TFT LCD screen display
- Free Frequency Response Analyzer Software
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High Pass, Low Pass and Band Pass Filter Functions
- 29,000 segmented memory sections and waveform search function
- I2C/SPI/UART/CAN/LIN serial bus trigger and decoding functions
- Data log function is able to track signal changes up to 100 hours
- Network storage function
Applications
- Embedded / Digital Systems Debug
- Serial / Bus Protocol Debugging
- Education / Training / Lab Work
- Component / Device Test
- Power / Analog Circuit Debugging
- Signal Integrity / Transient & Noise Analysis
Each Unit Includes
- 1 - 100 MHz, 2-Channel, 1 GS/s Digital Storage Oscilloscope (MSO-2102EA)
- 1 - Power Cord
- 1 - Certificate of Calibration
- 1 - CD-ROM (Quick Start Guide, User Manual, Programming Manual)
- 2 - Passive Probes
- 1 - 16-Channel Logic Analyzer Probe (GTL-16E)
- 2 - BNC-BNC Cable (GTL-110)
