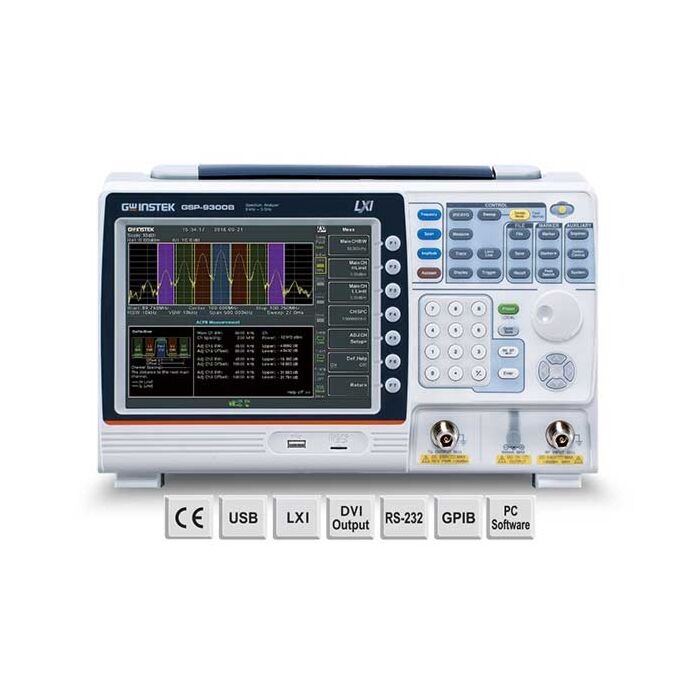

The Instek GSP-9300B Spectrum Analyzer meets basic RF measurement requirements via the frequency stability of 0.025ppm, aging rate of 1ppm/year, built-in preamplifier and base noise of -149dBm/Hz. More than 20 measurement applications are included such as AM/FM modulation signal analysis, signal channel analysis, and CATV parameter test.
- Frequency Range: 9kHz - 3 GHz
- 0.025ppm Frequency Stability and 1ppm aging Rate
- Built-in Preamplifier, 50dB Attenuator, and Sequence Function
- RBW: 1Hz - 1MHz
- Sensitivity: -149dBm/Hz (@PreAmp on)
- Built-in AM/FM Demodulation & Analysis
- Built-in P1dB point, Harmonic, Channel Power, N-dB bandwidth, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, Noise Marker, Frequency Counter, Time Domain Power, Gated Sweep
- Built-in Spectrogram, Topographic and Dual-View Display Modes
- Remote Control Interface: LAN, USB, RS-232
Each Unit Includes
- 1 - Spectrum Analyzer with Built-in Preamp (GSP-9300B)
- 1 - Power Cord
- 1 - Certificate of Calibration
- 1 - CD with Quick Start Guide, User Manual, Programming Manual, SpectrumShot Software, SpectrumShot Guide & IVI Driver
