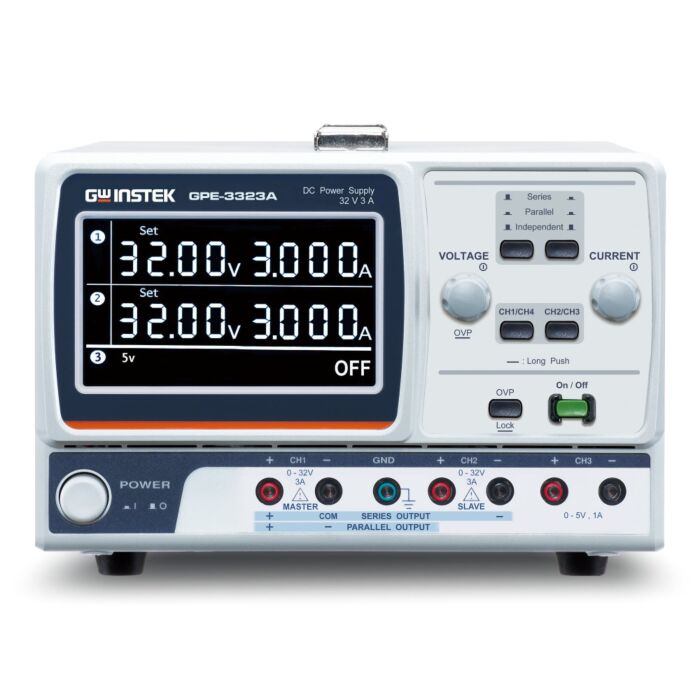

GW Instek GPE-3323A is a triple-channel linear DC power supply with 217W total output power, designed for laboratory, research, development, and production applications requiring high stability and precision. Features a 4.3" color LCD display, encoder control for precise settings, and a fixed 5V channel for digital circuit powering.
The GPE-X323A series is a cutting edge, economical linear DC Power supply. The GPE-X323A series features output power from 192 watts to 217 watts, independent isolated output channels, high resolution, low noise, high reliability, and compact size. The GPE-X323A series has a built-in digital panel control design to replace conventional control method. This unique design allows the GPE-X323A series linear DC power supply to provide users with more efficient functionalities, including set view and key lock so as to expedite the operation process. The key lock function protects DUTs by preventing others from changing voltage and current parameters. Additionally, output key light facilitates users in clearly reading the operational status of power supply.
- 3 independent isolated channels
- CH1/CH2: 0-32V, 0-3A
- CH3: 5V fixed, 5A
- Total power: 217W
- Setting/readback resolution: 10mV/1mA
- Ripple & noise: ≤1mVrms (5Hz-1MHz)
- 4.3" color LCD display
- Series tracking function CH1/CH2: 0-64V/0-3A
- Parallel tracking function CH1/CH2: 0-32V/0-6A
- Automatic CV/CC mode
- Protections: OVP, OCP, OTP, reverse polarity
- Digital control with encoder switch
- Panel lock function for safety
- Analog remote On/Off control
Applications
- Laboratories and Educational Facilities
- Product Testing and Quality Assurance
- Service Operation and Post-Sales Support
- Product Development and Debugging
Each Unit Includes
- Linear DC Power Supply (GPE-3323A)
- Power cord
- Test leads GTL-204A x 3 (European type)
- Documentation
