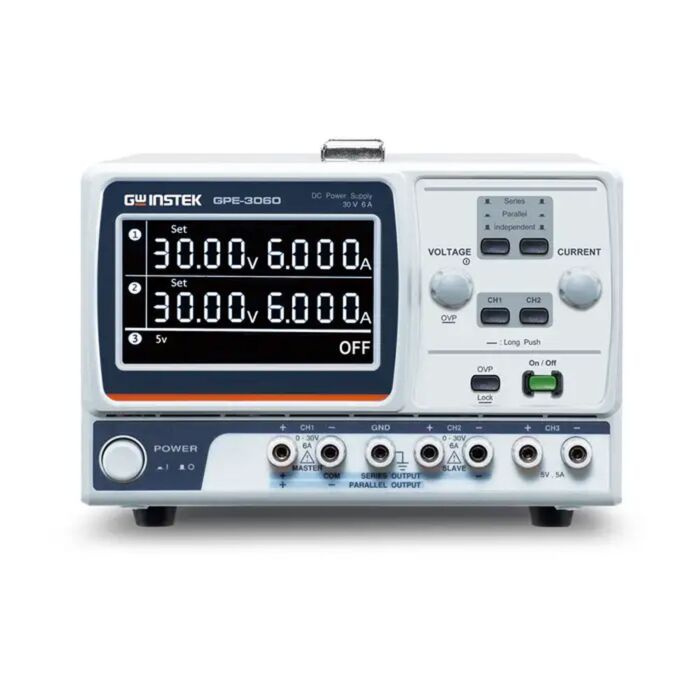

The GPE-3060/6030 launched by GW Instek are high-resolution linear DC power supplies. Their primary aim is to replace the existing GPC-3060D/ 6030D models. The GPE-3060/6030 deliver 385 watts of output power and feature three independent isolated output channels. The GPE-3060 offers CH1/CH2 outputs of 0 to 30V and 0 to 6A, while the GPE-6030 supports CH1/CH2 outputs of 0 to 60V and 0 to 3A. Both models feature CH3 outputs of 5.0V at 5A.
With respect to high program resolution, GPE-3060 provides 10mV/2mA and GPE-6030 offers 20mV/1mA. GPE-3060/6030 adopts a new hybrid power supply design, which can save 13% of power consumption compared with the wattage of the conventional linear power supplies, and the volume and weight are significantly reduced.
The GPE-3060/6030 linear DC power supplies have a built-in digital panel control design. By long pressing and short pressing a single button, they provide efficient and user-friendly OVP (overvoltage protection) function. The OVP function provides overvoltage protection, and the panel lock function prevents voltage/current parameters from being tampered with by a third party to improve the protection of the DUT.
The voltage and current setting knobs are changed to Encoder Switches to make the setting more accurate. In addition, the On/Off output button has a backlight display, which makes it easier for users to identify the current operating status of the power supply.
GPE-3060/6030 provide the output On/Off function. This function can avoid unnecessary damage caused by pre-output when the DUT is connected to the power supply. Users can set the voltage and current parameters in advance and confirm all connections have been completed, and manually execute output On/Off function through the front panel. Furthermore, the series provides a simple analog control function to control external output On/Off through the Remote Control terminal on the rear panel.
- 4.3" single color LCD display
- Three independent isolated output channels
- Series/Parallel Tracking function
- Output On/Off button with backlight display
- Simple analog control interface
- Overvoltage and overload protection functions
- Panel lock function prevents tampered parameters
- Intelligent cooling fan to dissipate heat
Applications
- Scientific Research and Experimental Testing
- Electronic Parts Test
- 3C Electronic Product Test
Each Unit Includes
- 1 - Triple-Channel Linear DC Power Supply, 30V/6A, 385W (GPE-3060)
- 1 - Quick Start Manual
- 1 - Power Cord
- 3 - Test Leads (GTL-104A)
