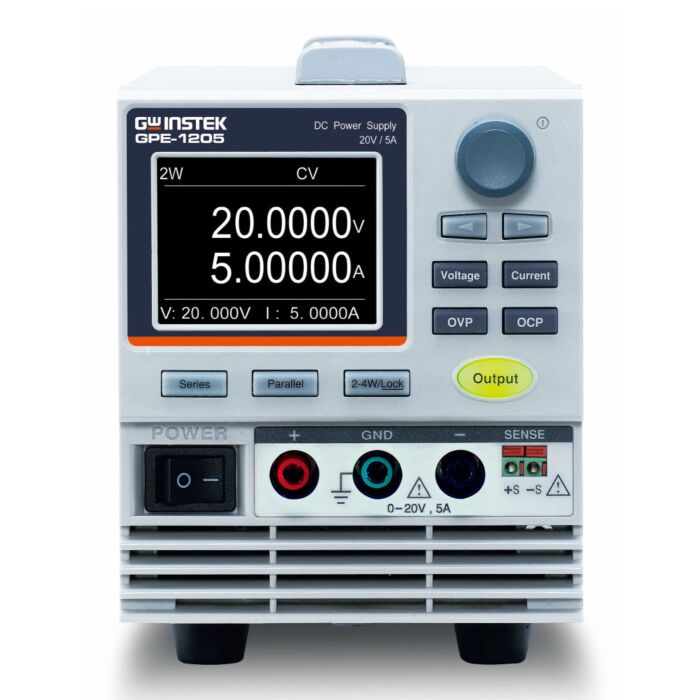

GW Instek GPE-1205 is a compact single-channel linear DC bench power supply with 100W output power, designed for laboratory, research, development, and production applications requiring high stability and precision. Features a 2.4" color TFT LCD display, encoder control for precise settings, and advanced protection functions to ensure safety and reliability.
The GPE-1000 series is a single output, 96 W to 100 W, linear DC power supply. GPE1000 series provides small, compact size for bench use; low output ripple and noise ≤ 0.5 mVrms; High resolution setting and readback. Also, the GPE-1000 Series offer 4-wire remote sense to give you an accurate voltage at the load.
- Output voltage: 0-20V
- Output current: 0-5A
- Maximum power: 100W
- Setting resolution: 1mV/0.1mA
- Readback resolution: 0.1mV/10µA
- Ripple & noise: ≤0.5mVrms (5Hz-1MHz)
- 2.4" color TFT LCD display
- Remote Sense function (compensation up to 1V)
- Automatic CV/CC mode
- Protections: OVP, OCP, OTP, reverse polarity
- Series/parallel function (2 units of same model)
- Temperature-controlled fan for noise reduction
- Panel lock function
- Output On/Off control
Applications
- Research & Education
- HiFi Audio Circuit
- Devie/Components Testing
- 3C Products Testing
Each Unit Includes
- Linear DC Power Supply (GPE-1205)
- Power cord
- Test leads GTL-204A (European type)
- Documentation
