GW Instek GDP-025 25MHz High Voltage Differential Probe

The Instek GDP-025 25 MHz High Voltage Differential Probe enables users to safely make high-voltage measurements on floating circuit test. It converts floating signals to low-voltage ground referenced signals that can be displayed safely and easily on any ground referenced oscilloscope.

• Flexible attenuation option
• Bandwidth: 25MHz
• High-voltage differential probe converts floating signals to low-voltage ground referenced signals
• User selectable attenuation settings
• Over-range indicator when probe input exceeds dynamic range of probe
• Accuracy: ±2%
• Output: +/-7V
• Output Impedance: 50Ohm
• Power Supply: External 9VDC power supply

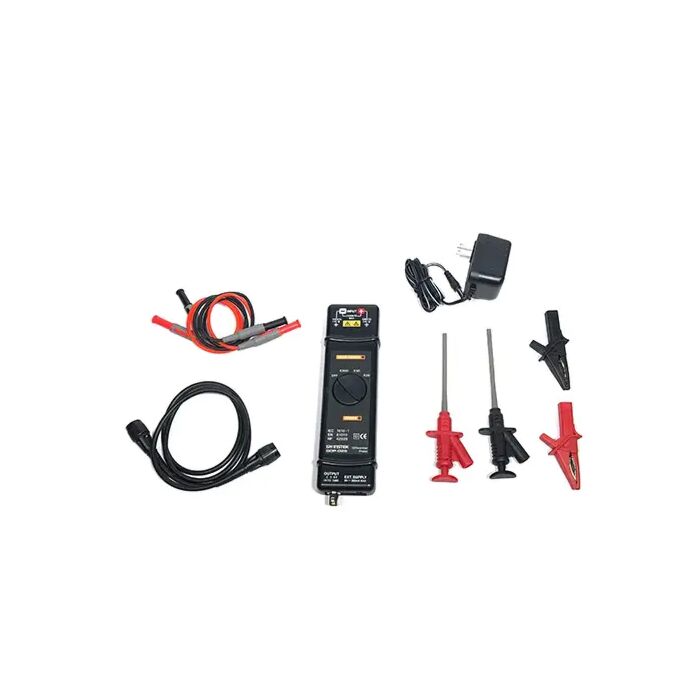

Each Unit Includes

• 1 - High Voltage Differential Probe (GDP-025)
• 1 - 9VDC Power Supply
