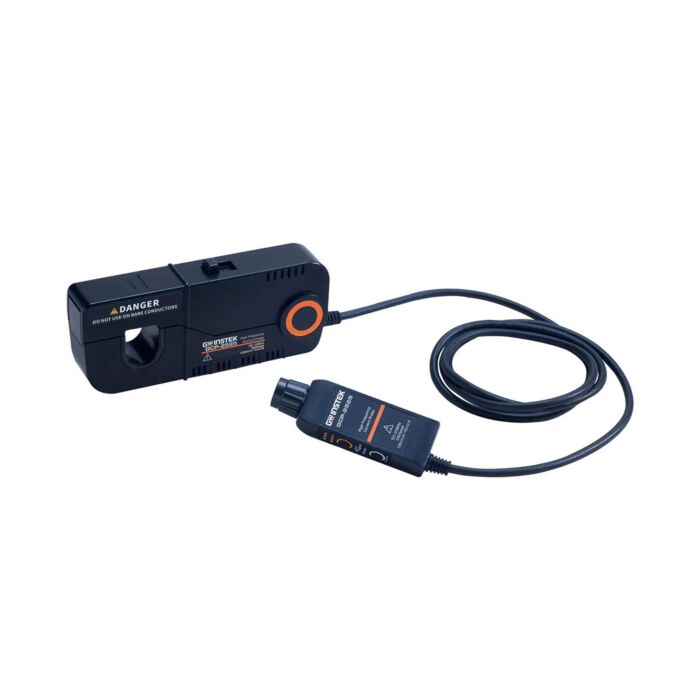

GW Instek GCP-2525 Current Probe for Digital Storage Oscilloscopes, 25MHz

The Instek GCP2525 is a high-performance AC/DC current probe designed for use with oscilloscopes and precision measurement equipment. The GCP-2525 lets users measure both alternating and direct current waveforms without breaking the circuit. Ideal for engineers and technicians analyzing power supplies, motor drives, inverters/converters, industrial electronics, and more.

• Easy-to-use and accurate AC/DC current measurements
• Low noise and DC drift
• Split-core probe head construction allows easy connection to conductors
• Bandwidth (-3 dB): DC to 25 MHz
• DC + Peak AC Max. (non-continuous): 250A
• Continuous max. current (RMS): 170 Arms

Applications

• Power Supplies
• Motor Drives
• Semiconductor Devices
• Power Inverters/Converters
• Industrial/Consumer Electronics
• Transportation Systems
• Electronic Ballasts

Each Unit Includes

• 1 - 25MHz, 250A, AC/D Current Probe (GCP-2525)
• 1 - Power Adapter with Interchangeable Plugs
• 1 - AC Plug Changeable (CN/US/UK/EU)
• 1 - BNC to BNC Cable (with 50 ohm terminal)
