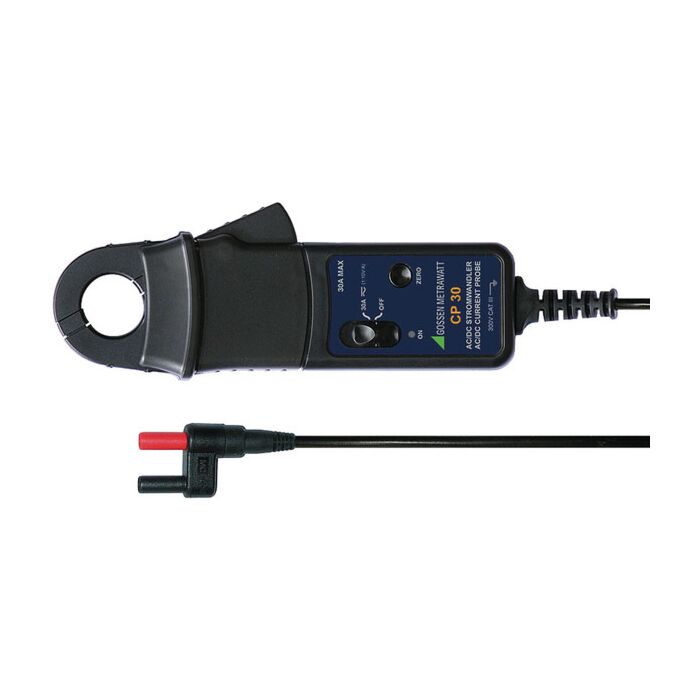

Gossen Metrawatt CP30

Product Highlights

Using advanced Hall Effect technology they can measure currents accurately.

• AC and DC current measurement for TRMS multimeters High accuracy of 1%
• 1 mA resolution
• Auto Power Off for saving batteries
• High bandwith DC.. 20 kHz
• The transformation ratio can be set directly in the METRAHIT multimeters
• Simple autozeroing via push button
• Type CP30 CP330 CP1100 CP1800
• Measuring range 0 ... 30 A (1) 0 ...30 / 300 A 0...100 / 1000 A 0...125 / 1800 A
• Resolution 1 mA 50 mA/ 100mA 100 mA/ 500mA 100 mA/ 500mA
• Overload capacity 500 A (60s) 600 A (60s) 2000 A (60s) 2000 A (60s)
• Temperature coefficient /°C ±0,01% of rdg. ±0,1 % of rdg. ±0,1 % of rdg. ±0,1 % of rdg.
• Transformation ratio 100 mV/A 10 mV/A,1mV/A 10 mV/A,1mV/A 10 mV/A,1mV/A
• Overall DC accuracy ±1% of rdg.
• ±2mA ±1% of rdg.
• ±50/100 mA ±1% of rdg.
• ±100/500 mA ±1% of rdg.
• ±100/500 mA
• Frequency range DC... 20 kHz
• (-1 dB) DC... 20 kHz
• (-3 dB) DC... 20 kHz
• (-1 dB) DC... 20 kHz
• (-1 dB)
• Clamp opening 25 mm 25 mm 32 mm 32 mm
• Article nummer Z201B Z202B Z203B Z204A
• 1) DC or ACpk
• Operating voltage 300 V ACRMS or DC
