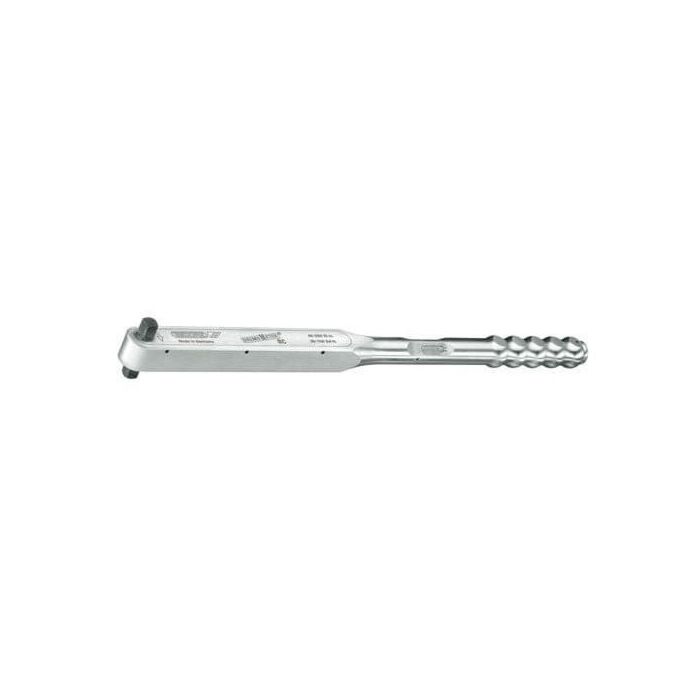

Gedore Tools 8578-00
Torque Wrench DREMOMETER BCL 1/2",40-200Nm

Order #: 7683670

Mfg #: 7683670

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,826.86

Gedore Tools 8578-00

Torque Wrench DREMOMETER BCL 1/2",40-200Nm

Order #: 7683670

Mfg #: 7683670

$1,826.86
Availability: Ships in 3-4 weeks

Product Highlights

  • Controlled screw tightening in the range 6 - 3000 N·m
  • For use in almost all industrial manufacturing areas Features:
  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
  • Automatic short-path actuation with tactile impulse and audible signal
  • Dual scale (except for type E-F) with corresponding scale graduation (see table)
  • Type B, BC, C with push-button release
  • Type BCK with integrated ratchet function Technical advantage/Function:
  • Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches) Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a unique lever mechanism
  • Forged lever chain from our own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • Single- and double-square drive for controlled bi-directional tightening
  • Drive connector square (male): 1/2 inch
  • Drive connector square (male) nominal size: 12.5 mm
  • Range of work / measurement N.m (min/max): 40-200 N·m
  • Range of work / measurement lbf.ft (min/max): 30-150 lbf·ft
  • Scale divisions: 5 N·m / 5 lbf·ft
  • Distance middle of handgrip to pivot point: 463 mm
  • Height: 30 mm
  • Distance housing - square drive: 17.5 mm
  • Length (L, L1): 551 mm
