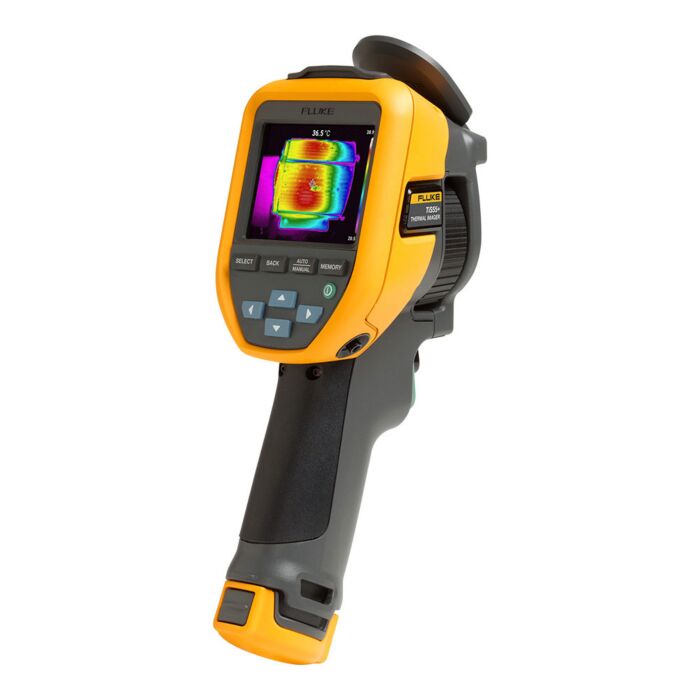

Fluke TIS55 PLUS 27HZ Thermal Imager, 256 x 192, 28x20 FOV, 27 hz

Order # TIS55-PLUS-27HZ | Mfg # 5160004

New

Fluke TIS55 PLUS 27HZ Thermal Imager, 256 x 192, 28x20 FOV, 27 hz

Save 10%

$6,089.99

$5,480.99

In stock

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

The TiS55+ comes with built-in personal assistants, which means you can finally ditch the clipboard and have all the information you need in the images you take. Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started, you need features that make it easy to set up your image organization and inspection routines. With the TiS55+ and TiS75+, you're well on your way to implementing a successful PM program.

Rugged. Reliable. Accurate: At Fluke, we know accidents happen-tools will be dropped, kicked, stepped on or knocked over. You shouldn't have to replace a tool because it fell off the workbench or was splashed with water or dirt. That's why we designed the TiS55+ thermal camera to withstand a 2-meter drop and be water/dust resistant (IP54). You need to know that your camera will start up every time.

Be proactive instead of reactive: Take your plan for a proactive maintenance (PM) program and turn it into reality. To get started, you need features that make it easy to set up your image organization and inspection routines. With the TiS55+ and TiS75+, you're well on your way to implementing a successful PM program

Asset Tagging allows you to easily compare asset images over time.
Scanning the QR code on each asset creates a timeline of your inspections.
Use the time saved (25% on average spent organizing thermal images) to analyze asset images for trends, diagnosing issues and fixing problems before they become failures.
Voice annotation
Record up to 60 seconds per thermal image
Identify exactly what you see in real time
IR-PhotoNotes
Take photos of asset numbers and other identifiers
Use as a reference when looking at the thermal image on your computer
Asset Tagging
Sort your thermal images by asset
Scan a QR code on your asset, then start capturing thermal images
Connect your camera to your computer to view the images, sorted by asset

Key Attributes

Resolution: 256 x 192 thermal resolution
Temperature Range: -20 °C to 550 °C
Accuracy: ±2 °C or 2 %
Display: 3.5" touchscreen 640 x 480 IPS LCD

Please Note: Thermal Imaging Cameras are classified by the U.S. Department of Commerce as "dual use" instruments. Transcat is authorized to sell these instruments only in the United States and Canada. Diversion contrary to U.S. law is prohibited. To ensure that Thermal Imagers sold by Transcat do not go outside the US or Canada, we require a Dual Use Instrument End-User Certification Form to be filled out at time of purchase.

Technical Resources

Fluke TiS55 Plus and TiS75 Plus Series Datasheet

Specifications

Specifications
Key Features
Infrared Resolution	384 x 288 (110,592 Pixels)
IFOV	1.91 mRad
Field of View	42° x 30°
Minimum Focus Distance	0.5 m
Focus System	Manual Focus and 1 meter focus marker
Wireless Connectivity	Yes, to PC, iPhone®, iPad (iOS 4s and later)®, Android 4.3 and up, and WiFi and LAN (where available)
Fluke Connect App Compatible	Yes, connect your camera to your smartphone, and images taken automatically upload to the Fluke Connect app for saving and sharing
Fluke Connect Assets Optional Software	Yes, assign images to assets and create work orders. Easily compare measurement types - whether mechanical, electrical or infrared images - in one location
Asset Tagging	Scan a QR code to automatically organize and file thermal images with Fluke Connect™
IR-Fusion technology	AutoBlend continuous 0 % to 100 %. Adds the context of the visible details to your infrared image
Picture-In-Picture (PIP)	Yes
Display	3.5" (8.9 cm landscape) touchscreen 640 x 480 LCD
Ergonomic Design	Designed for one-handed use
Thermal Sensitivity	40 mk
Level and Span	Smooth auto and manual scaling
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	3°C (4.5°F)
Minimum span (in auto mode)	5°C (9.0 ° F)
Built-in digital camera (visible light)	Up to 5 mp
Frame Rate	27 Hz models
Dew point calculation	Yes, on camera
Data Storage and Image Capture
Internal Memory	~500 images
External Memory	≥4 GB SD card (>1000 images)
Image capture, review, save mechanism	One-handed image capture, review, and save capability
Image File Formats	Non-Radiometric BMP or JPEG or fully-radiometric is2
Memory Review	Yes
Software	Fluke Connect software - full analysis and reporting software with access to the Fluke Connect
Analyze and store radiometric data on a PC	Yes
Export file formats with Fluke Connect software	is3, is2, BMP, GIF, JPEG, PNG, TIFF
Voice Annotation	Yes, 60 second maximum audio recording via Bluetooth Audio Headset Profile (HSP) connection to external device.
IR-PhotoNotes	Yes. Up to 1 extra user-selectable visible light image capture to be included in IS2 file.
Text Annotations	After IS2 capture, user can type in a note using on-screen keyboard.
Video recording and formats	No
Remote Control Operations	No
Auto Capture (Temperature and Interval)	Yes. User-Selectable Time Interval for Capturing IS2 or JPEG files
Battery
Batteries (field-replaceable, rechargeable)	Lithium-ion Rechargeable Battery
Battery Life	≥ 3.5 hours continuous without WiFi (Actual life depends on settings and usage)
Battery Charging Time	≤2.5 hours to full charge
Battery Charging System	Ti SBC3B Two-Bay Battery Charger or in-Imager charging. (does not come with two-bay battery charger)
AC Operation	AC operation with included power supply, universal adapters included Output: 15 VDC, 2 A
Power Saving	User-Selectable Sleep and Power Off
Temperature Measurement
Temperature range (not calibrated below -10 °C)	-20 °C to 550 °C (not calibrated below -10 °C)
Accuracy	±2 °C or 2 % (whichever is greater) at 25 °C ambient temperature
On-screen emissivity correction	Yes, "top ten" material list plus numerical adjustment between 0.01 and 1.00
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Color Palettes
General Specifications
Color Alarms	Yes. User-selectable hot and cold point and internal/external range color alarms. Modifies palettization of IR image by limiting which pixels are drawn using palette colors based on the pixel temperature.
Infrared spectral band	~8-14µm
Operating Temperature	-10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature	-20 °C to 50 °C (-4 °F to 122 °F) without batteries
Relative Humidity	10 % to 95 % non-condensing
Spot Temperature	Center spot (unmovable)
User-definable spot markers	Yes, 3 user-adjustable spot markers for a single pixel each. Position is adjustable. Temperature value for marker shown on screen. User can choose to switch display on/off for each marker.
User defined measurement boxes	Yes, 3 user-adjustable rectangles. Size and position are adjustable. Rectangle statistics shown on screen: Min, Max, Average temperature. User can choose to switch display on/off for each marker.
Hard Case	Rugged hard carrying case with soft transport bag, including adjustable strap
Safety Standards	IEC 61010-1: Pollution Degree 2
Electromagnetic compatibility	IEC 61326-1: Portable Electromagnetic Environment; IEC 61326-2-2 CISPR 11: Group 1, Class A
Australian RCM	RCM IEC 61326-1
US FCC	47 CFR 15 Subpart C Sections 15.207, 15.209, 15.249
Vibration	10 Hz to 150 Hz, 0.15 mm, IEC 60068-2-6
Shock	30 g, 11 ms, IEC 60068-2-27
Drop	Engineered to withstand 2 m drop
Sized (H x W x L)	~ (26.7 cm x 10.1 cm x 14.5 cm) ~ (10.5 in x 4.0 in x 5.7 in)
Weight (battery included)	≤2.27 kg (5 lb)
Enclosure rating	IP54
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
RoHS compliant	Yes
