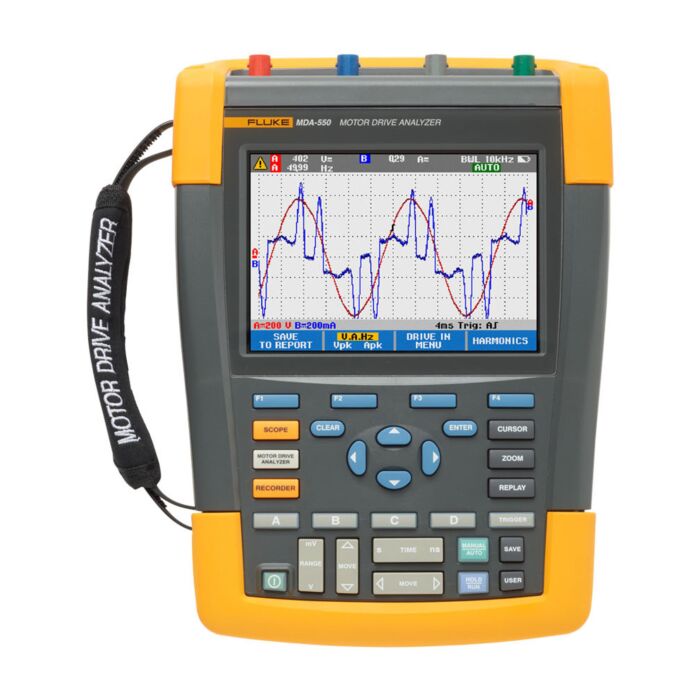

Fluke MDA-550 for Rent, Motor Drive Analyzer PRO, 4-channel, Color, 0-1000VAC

Product Highlights

• Measures inverter output voltage, DC bus voltage and ripple voltage, harmonics, unbalance
• Three powerful test tools in one: Motor-drive analyzer, waveform analyzer and recording data logger all in one
• Four input channels for voltage and current signals
• Measure key motor-drive parameters including
  • Voltage, current, DC Bus voltage level and AC ripple, voltage and current unbalance and voltage modulation
  • Additionally, the MDA-550 measures: harmonics, and motor shaft voltage discharges and is supplied with accessories for those measurements
  • The MDA-550 also performs perform extended harmonics measurements to identify the effects of low and high order harmonics on your electrical power system.
• Conduct guided measurements for motor-drive input, DC bus, drive output, motor input and shaft measurements (MDA-550) with graphical step-by-step voltage and current connection diagrams.
• Use simplified measurement setup with preset measurement profiles to automatically trigger data collection based on the chosen test procedure.
• Create reports quickly and easily that are perfect for docu
