Overview

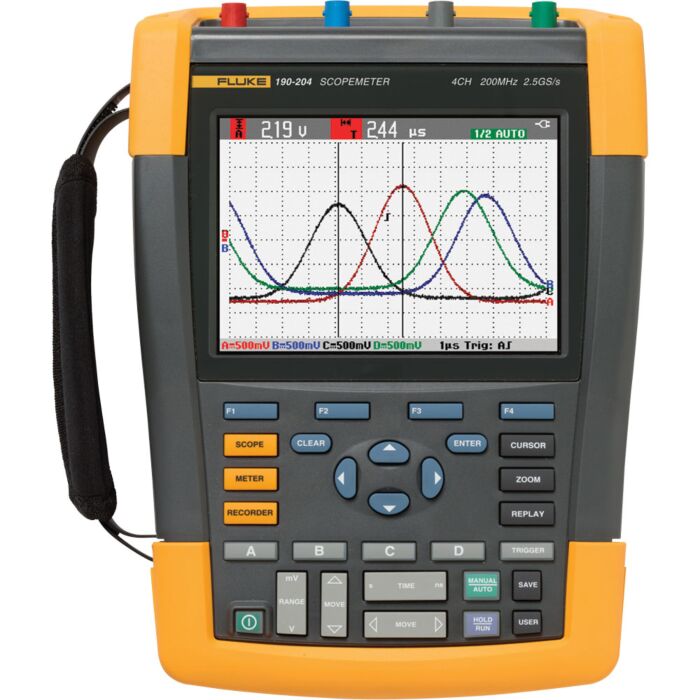

Fluke 190-204/S 20 years of ScopeMeter® Test Tool Innovation
As the first four-channel portable scope safety rated CAT III 1000V / CAT IV 600V, the Fluke ScopeMeter 190-204/S combines an unprecedented level of performance, ruggedness, and portability with 200 MHz bandwidth and real-time sampling rates up to 2.5 GS/s and 200 ps resolution to capture noise and other disturbances. This model features deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter test tools are hand-held battery operated, designed to meet the demands of field service professionals.
Product Highlights
- Four independent isolated inputs
- 200 MHz bandwidth
- Fast sample rate: up to 2.5 GS/s with up to 400 ps resolution
- Single shot, pulse width and video triggering
- Deep memory: 10,000 point per trace waveform capture
- CAT III 1000 V/CAT IV 600 V, safety rated
- Up to seven hours of operation with high-performance Li-ion batteries, standard
- Battery door for conveniently swapping out batteries to extend usage time
- Isolated USB ports, for memory devices and PC connectivity
- Security slot to lock down instrument using standard Kensington® lock
- All the standard features of ScopeMeter including TrendPlot, Connect-and-View triggering and ScopeRecord
Each Unit Includes
- Set of four probes
- Hanging strap
- USB cable with mini-B connector
- Double capacity Li-ion battery BP291
- Battery charger/power adapter BC190
- Users manuals on CD
- Hard-shell carrying case C290
- Flukeview software package
