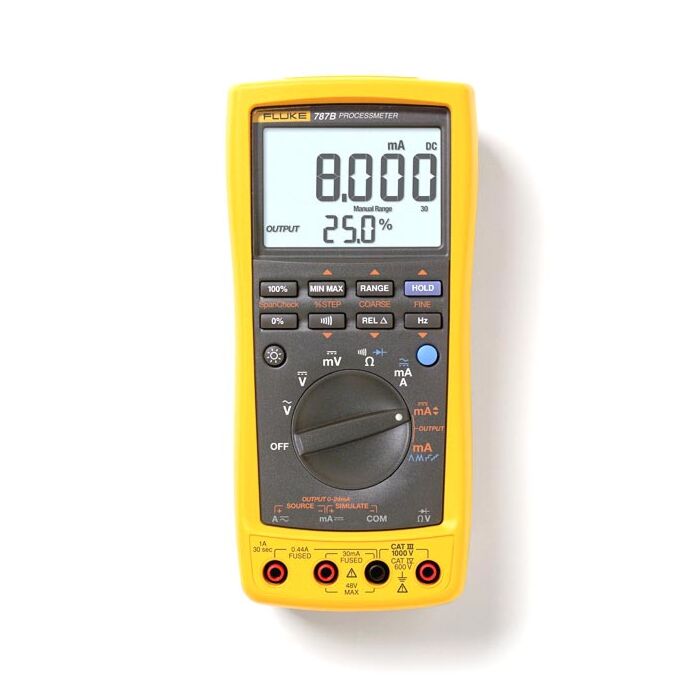

Fluke 787B ProcessMeter, TRMS DMM & mA loop calibrator
ProcessMeter, TRMS DMM & mA loop calibrator

Order #: 787B

Mfg #: 4777186

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,714.95

Fluke 787B ProcessMeter, TRMS DMM & mA loop calibrator

ProcessMeter, TRMS DMM & mA loop calibrator

Order #: 787B

Mfg #: 4777186

$1,714.95
The new 787B combined DMM and mA loop calibrator is an updated version of the popular Fluke 787 ProcessMeter™. All the functionality of the legacy 787 ProcessMeter™ and more.
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

787B Highlights

The Fluke 787B ProcessMeter™ double troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Whether you only need to source and simulate mA, or need a 24V loop power supply, Fluke has a ProcessMeter™ test tool designed specifically to meet your needs. Based on the trusted measurement capabilities of the Fluke 87 DMM, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.

With Fluke Connect® mobile app and desktop software compatibility technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere*.

  • 20 mA dc current source/measure/simulate
  • Simultaneous mA and % of scale readout
  • DMM designed to meet 1000 volt IEC 61010 CAT III and 600 V CAT IV standards
  • Fluke Connect® compatibility for wireless data logging (with IR3000FC module)*
  • Precision 1000 V, 440 mA true-rms digital multimeter
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode test and continuity beeper
  • Manual step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes

Each 787B Includes

  • TL71 Premium Test Lead Set plus AC72 Alligator Clips
  • Four AA alkaline batteries (installed)
  • Safety Sheet
  • Quick Reference Guide

Webinars

Electrical Safety Measurement Webinar with Fluke

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Fluke Toolpak Meter Hanging Kit
    Fluke Toolpak Meter Hanging Kit
    Meter Hanging Kit

    Order #: TPAK80-4

    Mfg #: 1281997

    Availability:
    In stock
    Special Price $62.74 Regular Price $74.79
  2. Fluke C25
    Fluke C25 Soft Carrying Case for Fluke Meters
    Soft Carrying Case for Fluke Meters

    Order #: C25

    Mfg #: 681114

    Availability:
    In stock
    Special Price $64.31 Regular Price $74.79
  3. Fluke C115 Soft Carry Case with Shoulder Strap
    Fluke C115 Soft Carry Case with Shoulder Strap
    Soft Carry Case w/Shoulder Strap

    Order #: C115

    Mfg #: 2826063

    Availability:
    In stock
    Special Price $64.31 Regular Price $74.79
  4. Fluke TL175 TwistGuard Test Leads
    Fluke TL175 TwistGuard Test Leads
    TwistGuard Test Leads

    Order #: TL175

    Mfg #: 3521976

    Availability:
    In stock
    Special Price $55.66 Regular Price $62.55
  5. Fluke TL220
    Fluke TL220 Industrial Test Lead Set for All Fluke Meters
    Industrial Test Lead Set for All Fluke Meters

    Order #: TL20

    Mfg #: 2003625

    Availability:
    In stock
    Special Price $133.13 Regular Price $149.59
  6. Fluke TLK-225
    Fluke TLK-225 SureGrip Master Accessory Set
    SureGrip Master Accessory Set

    Order #: TLK225

    Mfg #: 2097031

    Availability:
    In stock
    Special Price $262.43 Regular Price $312.79
  7. Fluke TLK289
    Fluke TLK289 Industrial Master Test Lead Set
    Industrial Master Test Lead Set

    Order #: TLK289

    Mfg #: 3045646

    Availability:
    In stock
    Special Price $290.48 Regular Price $326.39
  8. Fluke 773
    Fluke 773 Milliamp Clamp Meter
    Milliamp Clamp Meter

    Order #: 773

    Mfg #: 3362365

    Availability:
    In stock
    $2,490.15
  9. Fluke C125
    Fluke C125 Case for Fluke 120 Series ScopeMeters
    Case for Fluke 120 Series ScopeMeters

    Order #: C125

    Mfg #: 646858

    Availability:
    In stock
    Special Price $65.48 Regular Price $76.15
  10. Fluke 771
    Fluke 771 Milliamp Process Clamp Meter
    Milliamp Process Clamp Meter

    Order #: 45876EL

    Mfg #: 2646347

    Availability:
    In stock
    Special Price $1,221.16 Regular Price $1,327.35
  11. Fluke i1010
    Fluke I1010 AC/DC Clamp-on Current Probe 600A/1000A
    AC/DC Clamp-on Current Probe 600A/1000A

    Order #: I-1010

    Mfg #: 617735

    Availability:
    In stock
    Special Price $647.55 Regular Price $727.59
  12. Fluke PRV240
    Fluke PRV240 Battery-powered voltage source proving unit
    Battery-powered voltage source proving unit

    Order #: PRV240

    Mfg #: 4566209

    Availability:
    In stock
    Special Price $228.19 Regular Price $271.99
  13. Fluke i410
    Fluke I410 AC/DC Clamp-on Current Probe, 400A
    AC/DC Clamp-on Current Probe, 400A

    Order #: I-410

    Mfg #: 617727

    Availability:
    In stock
    Special Price $376.53 Regular Price $448.79
  14. Fluke TP1
    Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead Sets
    Slim Reach Flat Blade Probe for Fluke Lead Sets

    Order #: TP1E

    Mfg #: 650887

    Availability:
    In stock
    Special Price $36.30 Regular Price $40.79
  15. Fluke TP220 SureGrip Industrial Test Probes
    Fluke TP220 SureGrip Industrial Test Probes
    SureGrip Industrial Test Probes

    Order #: TP20

    Mfg #: 1670056

    Availability:
    In stock
    Special Price $38.72 Regular Price $43.51
  16. Fluke FVF-BASIC Flukeview Forms Basic Software with Cable
    Fluke FVF-BASIC Flukeview Forms Basic Software with Cable
    Flukeview Forms Basic Software with Cable

    Order #: FVF-BASIC

    Mfg #: 2396957

    Availability: Ships in 3-4 weeks
    Special Price $267.82 Regular Price $311.43
  17. Order Fluke 80TK on sale from Transcat's 80 Probes seriev
    Fluke 80TK Thermocouple Module
    Thermocouple Module

    Order #: 80TK

    Mfg #: 736736

    Availability:
    In stock
    Special Price $254.17 Regular Price $285.59
Measurement function Range and resolution Best accuracy (% of reading + LSD)
V dc 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.1% + 1
V ac (true-rms) 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.7% + 2
mA dc 30.000 mA .05% + 2
A dc 1.000 A (0.440 A continuous) 0.2% + 2
A ac 1.000 A (0.440 A continuous) 1% + 2
Resistance 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M 0.2% + 1
Frequency (0.5 Hz to 20 kHz) 199.99 Hz, 1999.9 Hz, 19.999 kHz .005% + 1
Diode test 2.000 V (shows diode voltage drop) 2% + 1
Continuity Beeps for resistance < approx. 100 ohms
Output function Range and resolution Drive capability Accuracy (% of span)
DC current output (Internal battery operation) 0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA 24 V compliance or, 1,200 ohms, @ 20 mA 0.05%
DC current simulate (Ext. 15 V to 48 V loop supply) 0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA 1000 ohms, @ 20 mA 0.05%
Current adjustment modes Manual: Coarse, Fine, 25% and 100% step
Automatic: Slow Ramp, Fast Ramp, 25% step
Temperature range of 18 °C to 28 °C, for one year after calibration
General specifications
Maximum voltage applied between any jack and earth ground 1000 V RMS
Storage temperature -40 °C to 60 °C
Operating temperature -20 °C to 55 °C
Temperature coefficient  0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C)
Relative humidity  95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C
Vibration  Random, 2 g, 5-500 Hz
Shock  1 meter drop test
Safety  IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V
Size (HxWxL)  50 x 100 x 203 mm (1.97 x 3.94 x 8.00 in)
Weight  600 g (1.3 lbs)
Battery Four AA alkaline batteries
Battery life  140 hours typical (measurement), 10 hours typical (sourcing 12 mA)
Warranty  Three years
