Fluke FEV100/TY1 KIT2 Test Adapter EV Charging with Type 1 Plug, 125B, 87V, Tl224, US
Test Adapter EV Charging w/Type 1 Plug, 125B, 87V, Tl224, US

Order #: FEV100-TY1-KIT2

Mfg #: 5348161

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,890.99

Fluke FEV100/TY1 KIT2 Test Adapter EV Charging with Type 1 Plug, 125B, 87V, Tl224, US

Test Adapter EV Charging w/Type 1 Plug, 125B, 87V, Tl224, US

Order #: FEV100-TY1-KIT2

Mfg #: 5348161

$5,890.99
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Fluke FEV100/TY1 KIT contains the Fluke product for the electric vehicle charging segment. Designed to test function and safety of electric vehicles charging stations, recommended to comply with SAE-J1772 standards for US stations. Provides critical protective ground testing of the station, GFCI troubleshooting and CP communication stages between vehicle and station. Paired with the 87-V and 125B and test leads to test voltage, maximum charging current and verify CP signal output.

  • The Fluke FEV100 KIT includes an adaptor that simulates the presence of an electrical vehicle to test the functionality and safety of an electric vehicle AC charging station.
  • Check that an electric vehicle charging station is correctly wired and that protective earth is functioning properly with the PE pre-test feature.
  • Perform GFCI troubleshooting of an electric vehicle charging station and verify it is functioning properly for safety.
  • Test different charging states of an electric vehicle charging station with the turn of a button. Verify the charging voltage using the 87-V digital multimeter.

Key Attributes

  • Ac Output Voltage: Max. 250 V / 60 Hz, CAT II 300 V
  • Application: A: ± 12V 1kHz; B: 2.74kϛ +9 V / -12V 1kHz; C: 882ϛ +6 V / -12V 1kHz; D: 246ϛ +3V / -12V 1kHz
  • Application: Compatibility with other test and measurement tools, 87V & 125B scope included.
  • Application: Protective grounding test (PE), GFCI test, simulate PE + CP Errors

Key Uses of this Product

  • Simulates electric vehicle and vehicle faults
  • Adapter paired with test and measurement tools
  • Tests mains supply and grounding
  • Tests GFCI ground fault circuit interrupter

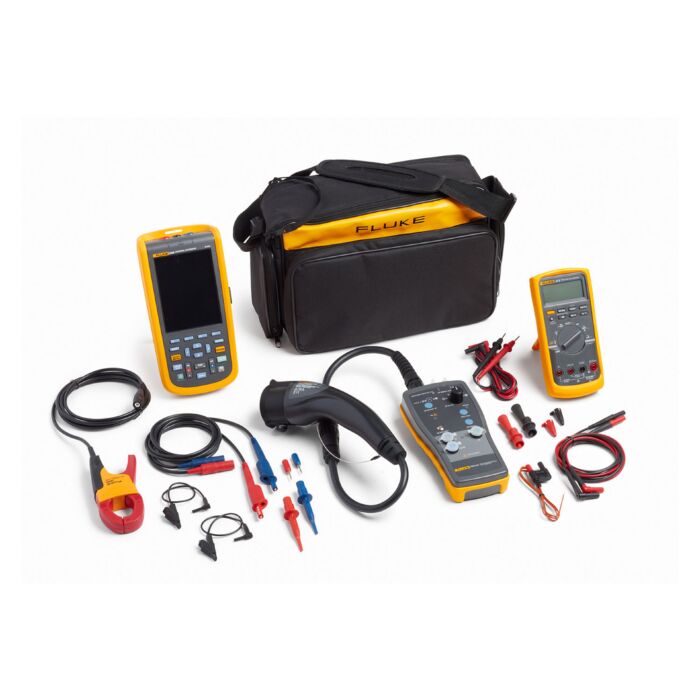

Each Unit Includes

  • FEV100
    • Fluke FEV100/BASIC Test Adapter
    • Fluke FEV-CON/TY1 Type 1 Connector & Cable
    • Soft Carrying Case
    • User Manual
    • 3-year warranty
  • 125B
    • Fluke 125B Hand-Held Oscilloscope
    • Shielded Test Leads with Black Ground Leads
    • Test Lead Black (for Grounding)
    • Hook Clips (red, blue)
    • Banana-to-BNC Adapters (black, x1)
    • 10:1 Voltage Probe
    • i400s AC Current Clamp
    • USB Angled Adapter
    • WiFi USB Adapter
    • Switch Mode Power Supply, Adapter/Battery Charger
    • Rechargeable Li-ion Battery Pack
  • 87V
    • Fluke 87V Industrial Multimeter
    • TL75 Test Leads (TL175 Eur)
    • AC175 Alligator Clips
    • Holster with tilt-leg, test lead storage
    • 80BK Temperature Probe
    • 9V Battery (Installed)
  • TL224
    • One pair (red, black) silicone insulated leads with one straight female coupler on one end and right angled on the other
    • One-year warranty
    • Quick Reference Guide
