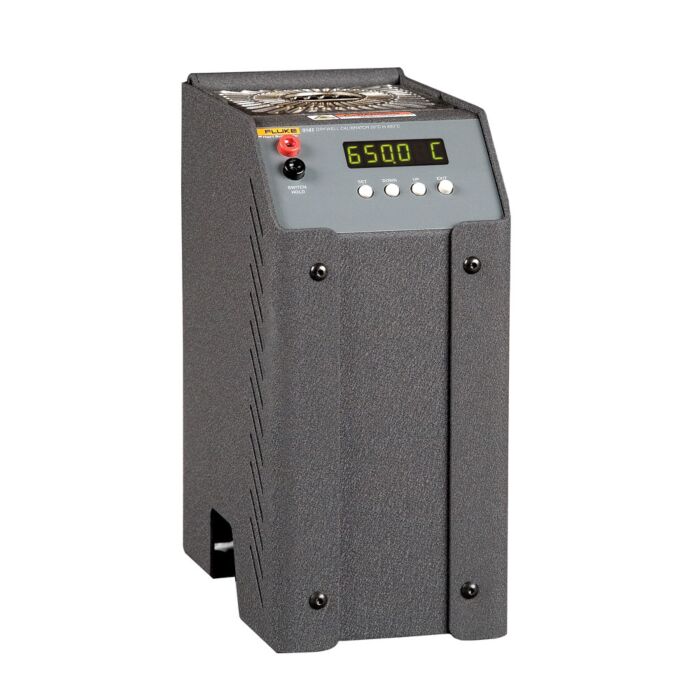

Used Fluke Calibration 9141 Dry Block Calibrator, 50C to 650C

Used Fluke Calibration 9141 Dry Block Calibrator, 50C to 650C

Order # 9141-USED

Mfg # 9141-156-TRNS

call-regular 800-828-1470
$0.00
  • Overview
  • Technical Resources
  • Specifications

Used Fluke Calibration 9141 Dry Block Calibrator, 50C to 650C

Order # 9141-USED | Mfg # 9141-156-TRNS
$0.00
Call for price
Also Available:
Rental

Request a Used Instrument Quote

Have a Question? Speak to a Transcat Expert: 800.264.4059

Used instruments from TranscatTranscat Used Instrument Guarantee, Calibration Certificate Included, 6 Month Warranty, Unsurpassed Service & Support

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Top reasons to consider the 9144 Field Metrology Well over the 9141 Dry-Well

  • Better accuracy, stability, and radial uniformity
  • Dual heater zones improve vertical temperature gradient
  • Greater immersion depth
  • Modern user interface and industrial design
  • Process Electronics option to read external reference probes and UUTs

Comparing the 9141 Dry-Well with the 9144 Field Metrology Well (with and without Process Electronics)

  • Lightweight and very portable
  • Accuracy to ±0.25 °C
  • RS-232 and Interface-it software included
  • Easy to recalibrate

Technical Resources

Fluke Calibration 9141 Datasheet

Specifications



9141 Dry-Well

9144 Field Metrology Well

9144-P Field Metrology Well with Process Electronics

Built-in thermometer readout

No

No

Yes

Temperature range

50 °C to 650 °C

50 °C to 660 °C

50 °C to 660 °C

Accuracy (at max)

± 1.0 °C

± 0.5 °C

± 0.07 °C

Stability (at max)

± 0.12 °C

± 0.05 °C

± 0.05 °C

Radial uniformity (at max)

± 0.12 °C

± 0.10 °C

± 0.10 °C

Axial uniformity (at max)

No spec

± 0 5 °C

± 0.5 °C

Heating speed (C/min)

52

41

41

Cooling speed (C/min)

22

17

17

Immersion depth (mm)

124

150

150
