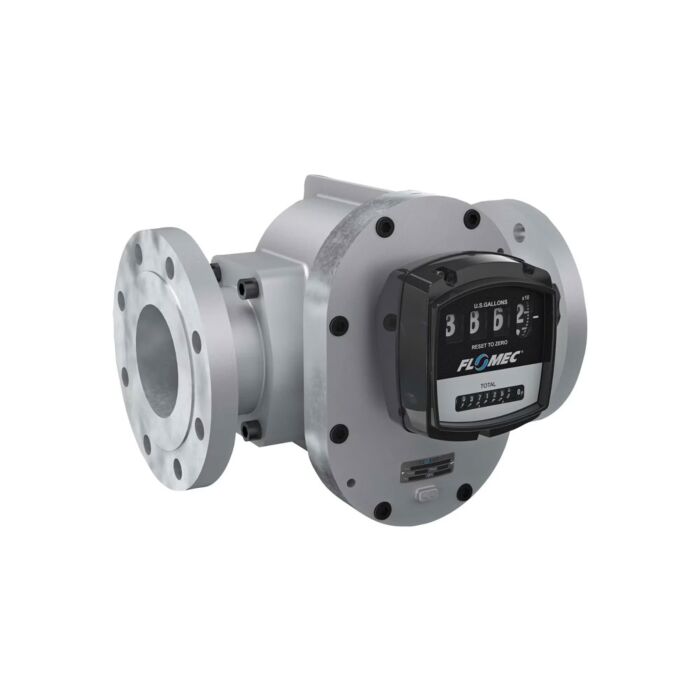

4-inch Aluminum Oval Gear Flow Meter with #150 ANSI Flange Fittings. Mechanical Display. For fuel additives, solvents, grease, oil, paint. The FLOMEC Aluminum Oval Gear Series is the ideal economical choice for high-accuracy batching, dosing, or packaging of clean solvents, grease, oil, additives, and other high-viscosity fluids. The FLOMEC Mechanical register provides trouble-free installation and usage in remote areas or areas with no power. Flow Meter: No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space.
- Robust aluminum mechanical registers, Batch and accumulative totals
- PPS (Ryton) Oval Gear rotors that provide highly accurate and repeatable direct volumetric reading
- Aluminum housing material for a more economical solution when chemical compatibility, lower pressure and temperature requirements allow
- No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space
- Recommend 40 Mesh (350 µn) filtration installed prior to meter
Applications
- Agricultural & Chemical Mixing
- Industrial Process Control
- Automotive & Fleet Fluid Handling
- Water & Wastewater Treatment
Each Unit Includes
- 4" OvalGear Aluminum #150 ANSI Flange Flow Meter Mech Display (OM100A001-840M4)
