3-inch Aluminum Oval Gear Flow Meter with #150 ANSI Flange Fittings. RT40 Transmitter with Built-In Digital Display. For fuel additives, solvents, grease, oil, paint. The FLOMEC Aluminum Oval Gear Series is the ideal economical choice for high-accuracy batching, dosing, or packaging of clean solvents, grease, oil, additives, and other high-viscosity fluids. Oval gear technology features rotors that provide highly accurate and repeatable direct volumetric readings. Flow Meter: No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space. RT40 Transmitter/Display: Fully programmable self-powered display with re-settable (batch) total, cumulative total, and instantaneous flow rate. This four-button design can provide an externally powered discrete output or high/low alarms for easy connection to a variety of chart recorders, display equipment, and process control equipment.
- Local Display RT40, LCD backlit display, discrete output signal for connection to a variety of chart recorders, display equipment, and process control equipment. Operating temperature of -22° F to 176° F (-30° C to 80° C)
- Flow alarm for high, low or high/low
- PPS (Ryton) Oval Gear rotors that provide highly accurate and repeatable direct volumetric reading
- PPS (Ryton) housing is a cost-effective alternative to a stainless-steel when chemical resistance is critical, but pressures and temperatures are low
- No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space
- Recommend 40 Mesh (350 µn) filtration installed prior to meter
Applications
- Agricultural & Chemical Mixing
- Industrial Process Control
- Automotive & Fleet Fluid Handling
- Water & Wastewater Treatment
Each Unit Includes

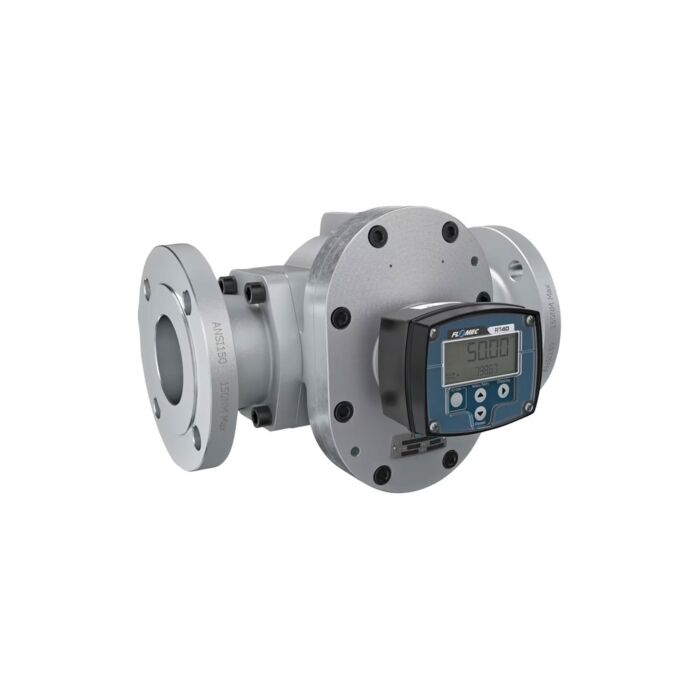

- 3" Oval Gear Aluminum 150ANSI Flange FlowMeter, RT40 Trans. Digital Display (OM080A001-846R7G)
