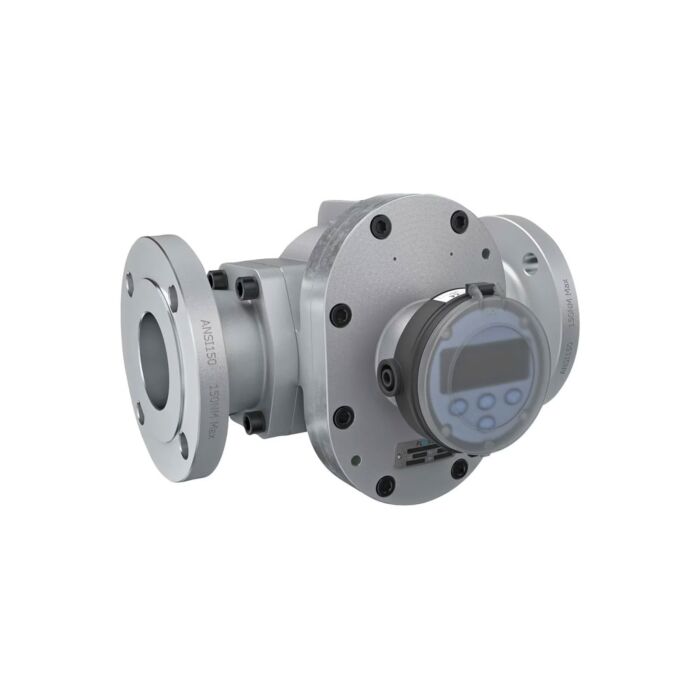

3-inch Aluminum Oval Gear Flow Meter with #150 ANSI Flange Fittings. RT14 Transmitter with Built-In Digital Display. For fuel additives, solvents, grease, oil, paint. The FLOMEC Aluminum Oval Gear Series is the ideal economical choice for high-accuracy batching, dosing, or packaging of clean solvents, grease, oil, additives, and other high-viscosity fluids. Oval gear technology features rotors that provide highly accurate and repeatable direct volumetric readings. Flow Meter: No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space. RT14 Transmitter/Display: Fully programmable self-powered display with re-settable (batch) total, cumulative total, and instantaneous flow rate. This four-button design can provide an externally powered analog output, plus a discrete output or high/low alarms for easy connection to a variety of chart recorders, display equipment, and process control equipment.
- Local Display RT14, LCD backlit display, analog output and discrete output signal for connection to a variety of chart recorders, display equipment, and process control equipment. Operating temperature of -22° F to 176° F (-30° C to 80° C)
- Flow alarm for high, low or high/low
- PPS (Ryton) Oval Gear rotors that provide highly accurate and repeatable direct volumetric reading
- Aluminum housing material for a more economical solution when chemical compatibility, lower pressure and temperature requirements allow
- No requirement for flow conditioning or straight pipe runs makes them ideal for compact installations with limited space
- Recommend 40 Mesh (350 µn) filtration installed prior to meter
Applications
- Agricultural & Chemical Mixing
- Industrial Process Control
- Automotive & Fleet Fluid Handling
- Water & Wastewater Treatment
Each Unit Includes
- 3" OvalGear Aluminum #150 ANSI Flange FlowMeter, RT14 Trans. Digi Display (OM080A001-842R5G)
