Order #: T865-24-14
Mfg #: 89214-0201

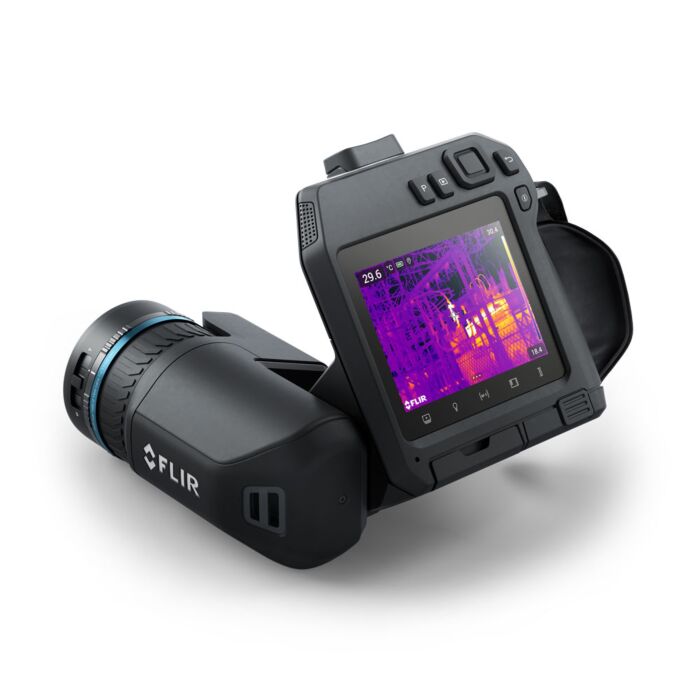

FLIR T865 24 + 14
Order #: T865-24-14
Mfg #: 89214-0201
Product Highlights
FLIR T865 w/ DFOV (14° - 24°), 640x480, -40°C to +2000°C, w/ FLIR Thermal Studio PRO and Route creator Plugin(3 months)
- Work safely and effectively with our ergonomic tilting optical block and array of lenses designed to meet your application needs, while unique features such as Route Creator, Meterlink & wireless data streaming maximize your efficiency
- FLIR Vision Processing™, MSX®, UltraMax®, Meterlink and industry-leading 2% Accuracy coupled with the unrivalled capabilities of FLIR Mobile, Thermal Studio and Research Studio reporting and analysis software packages provide the ability to confidently make critical decisions.
- Intuitive, on-camera features such as 1-Touch Level & Span, Inspection Routing, Voice, Text & Sketch Annotation, and Laser Auto Focus simplify and streamline workflows.
FLIR T800-Series thermal imaging cameras are powerful, ergonomic non-contact inspection tools. The 180° tilting optic design makes it comfortable, safe, and easy to assess the condition of critical electrical and mechanical equipment all day long. With advanced features including unmatched temperature measurements down to -40°C, accuracy as good as ±1°C / ±1%, 1-Touch Level/Span contrast enhancement, and laser-assisted autofocus, you'll get highly accurate temperature measurements every time. Pair any T800-Series camera with a FLIR FlexView™ dual field-of-view lens for the convenience to instantly switch from wide area to telephoto scanning; or combine a 6°FOV IR lens with the T865 to perform inspections on small targets from long distances. With the on-board Inspection Route system, you'll be able to record temperature data and imagery in a logical sequence for faster troubleshooting and repair.
IMPROVE WORKFLOW EFFICIENCIES
Collect and manage critical data quickly and easily
- Change from wide area scanning to telephoto instantly with the FlexView dual field-of-view lens
- Develop inspection routes in FLIR Thermal Studio Pro with FLIR Route Creator and upload them to the camera for streamlined inspections of critical assets
- Acquire temperature data and thermal and visual imagery in a logical sequence for faster preventative/predictive maintenance procedures
- Upload directly and securely to FLIR Ignite cloud and automate data management and reporting through easy transfer of organized files to FLIR Thermal Studio Pro
WORK SAFELY AND COMFORTABLY
Assess the state of equipment from a safe distance, at any angle, or in any lighting condition
- Use the camera in any environment - indoors or out - with a large, vibrant 4-inch color LCD display and an integrated eyepiece viewfinder for working in bright sunlight
- Image targets overhead or down low without strain thanks to the 180° rotating optical block and ergonomic design
- Accurately measure small targets over long distances or in large scenes by pairing the high-resolution IR sensor with the optional 6° telephoto lens
MAKE CRITICAL DECISIONS QUICKLY
Save time and share data faster to increase in-field efficiency
- Ensure precision measurement with laser-assisted autofocus, 1-Touch Level/Span, and exceptional temperature accuracy
- Avoid diagnostic errors with industry-leading image clarity from FLIR Vision Processing™, combining MSX®, UltraMax®, and proprietary adaptive filtering algorithms
- Optimize workflows with reporting features such as built-in voice annotation, customizable work folders, and Wi-Fi sync to FLIR mobile apps
- FLIR T300587Lens IR f=17/29mm DFOV (with bag)
Order #: T300587
Mfg #: T300587
Availability: Ships in 3-4 weeks$5,234.60
Overview | |
---|---|
Display | 4", 640 x 480 pixel touchscreen LCD with auto-rotation |
Laser Pointer | Yes |
Programmable Buttons | 2.0 |
Text | Predefined list or touchscreen keyboard |
Time Lapse | 10 sec to 24 hrs |
Voice | 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth |
Weight & Dimensions (without lens) | 1.3 kg (2.9 lb), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in) |
Connections & Communications | |
Communication Interfaces | USB 2.0, Bluetooth, Wi-Fi, DisplayPort |
METERLiNK | Yes |
Storage Media | Removable SD card |
Video Out | DisplayPort over USB Type-C |
Environmental | |
Operating Temperature Range | -15°C to 50°C (5°F to 122°F) |
Safety | EN/UL/CSA/PSE 60950-1 |
Shock & Vibration & Encapsulation | 25 g (IEC 60068-2-27), 2 g (IEC 60068-2-6), IP54 (IEC 60529) |
Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
Imaging & Optical | |
Color Palettes | Iron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava |
Detector Type and Pitch | Uncooled microbolometer, 12 µm |
Digital Camera | 5 MP, with built-in LED photo/video lamp |
Digital Zoom | 1-8x continuous |
f-number | 1.5 |
Focus | Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual |
Global Positioning System [GPS] | Automatic image tagging |
Image Frequency | 30 Hz |
Image Sketch | From touchscreen, on infrared image only |
IR Resolution | 640 x 480 pixels |
Lens Identification | Automatic |
Minimum Focus Distance | 1.0 m |
Non-Radiometric IR or Visual Video | H.264 to memory card |
Non-radiometric IR video streaming | H.264 or MPEG-4 over Wi-Fi; MJPEG over UVC or Wi-Fi |
Picture-in-Picture | Resizable and movable |
Radiometric IR video recording | Real-time radiometric recording (.csq) |
Radiometric IR video streaming | Yes, over UVC |
Spectral Range | 7.5 - 14.0 µm |
Thermal Sensitivity/NETD | <40 mK at 30°C (24° lens), <50 mK at 30°C (14° lens) |
UltraMax | Quadruples pixel count; activated in menu and processed in FLIR reporting software. |
Viewfinder | Yes |
Measurement & Analysis | |
Accuracy | ±1°C (±1.8°F): 5 to 100°C (41 to 212°F), ±1%: 100 to 120°C (212 to 248°F), ±2°C (±3.6°F): -40 to 100°C (-40 to 212°F), ±2%: 100 to 650°C (212 to 1202°F), 300 to 2000°C (572 to 3632°F) |
Area measurement information | Yes; calculates area inside measurement box in m² or ft² |
Laser Distance Meter | Yes; dedicated button |
Measurement Presets | No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2 |
Object Temperature Range | -40°C to 120°C (-40°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 2000°C (572°F to 3632°F) |
Spot Meter | 10 ea. in live mode |
Power | |
Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use |
Battery Type | Li-ion battery, charged in camera or on separate charger |
Shipping Information | |
Packaging | Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C), License card: FLIR Thermal Studio Pro (3 month subscription) + FLIR Route Creator Plugin for Thermal Studio Pro (3 month subscription) |
Storage Media | |
Image File Format | Standard JPEG with measurement data included |
Image Storage Mode | Infrared, visual, MSX®, Picture-in-Picture |
