Overview
Product Highlights

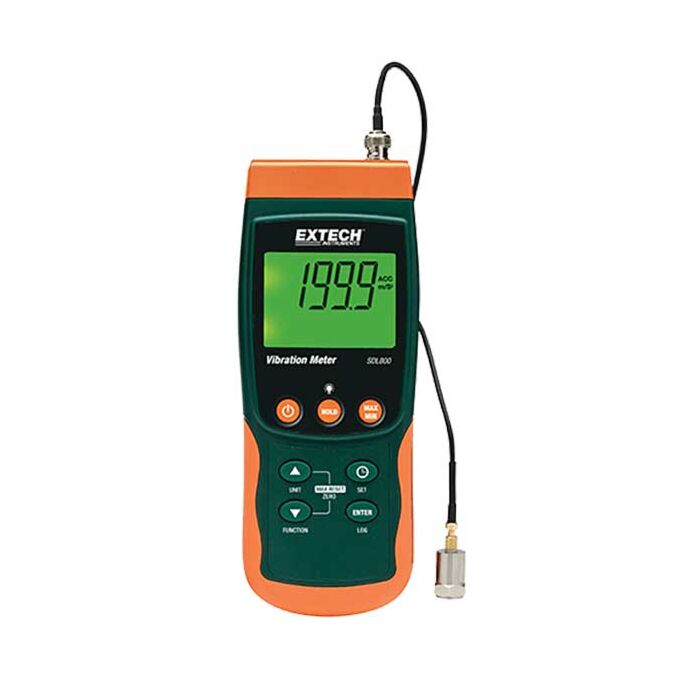

The SDL800 measures and datalogs vibration using a remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable. It offers a wide frequency range of 10Hz to 1kHz with basic accuracy of ±(5% + 2 digits). Manually store 99 readings or continuously datalog using a SD memory card, which allows user to easily transfer collected data to a PC for further analysis as an Excel format. Complete with remote sensor, magnetic mount, 6 x AA batteries, SD card, and hard carrying case.
Remote vibration sensor with magnetic adapter on 47.2"(1.2m) cable
Wide frequency range of 10Hz to 1kHz
Basic accuracy of ±(5% + 2 digits); Meets ISO2954
RMS, Peak Value or Max Hold measurement modes
Adjustable data sampling rate
Offset adjustment used for zero function to make relative measurements
Large backlit LCD
Stores 99 readings manually and 20M readings via 2G SD card
Record/Recall MIN, MAX, Data Hold and Auto power off
