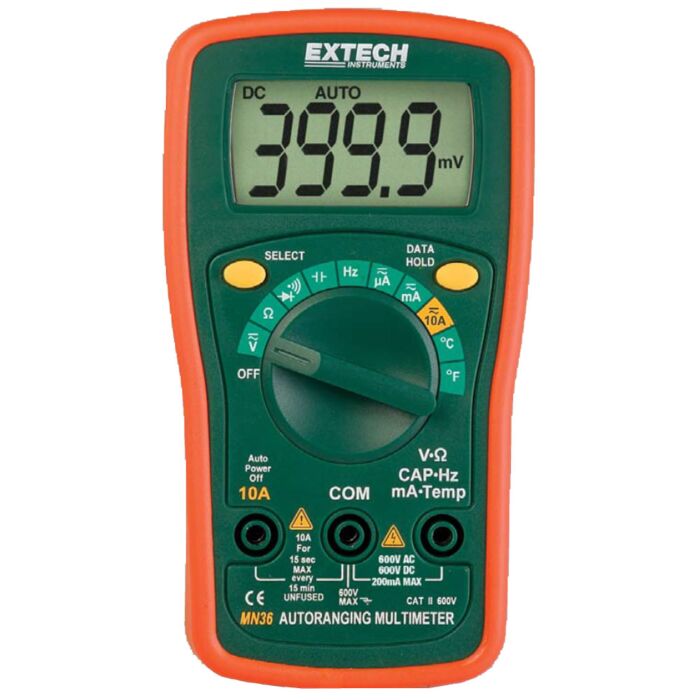

Extech MN36
Multimeter,Autoranging

Order #: MN36

Mfg #: MN36

Questions about availability or need help? Contact Us:

(800) 633-0561
$60.19

Extech MN36

Multimeter,Autoranging

Order #: MN36

Mfg #: MN36

$60.19
Availability: Ships in 3-4 weeks

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Compact Autoranging multimeters with 10 functions including Temperature

The Extech MN36 digital multimeter is compact but still packed with features. Capable of measuring AC and DC voltage up to 600 volts, the MN36 is autoranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Comes with protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads.

  • Large easy to read digital display
  • AC/DC Voltage, DC Current, Resistance, Capacitance, Frequency, Type K Temperature, Continuity/Diode
  • Convenient mini size with protective rubber holster and tilt stand
  • Data Hold locks reading in the display
  • Includes protective rubber holster, 2xAAA batteries, bead wire Type K temp. probe and test leads
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Specifications Range Basic Accuracy
DC Voltage 600V (0.1mV) ±0.5%
AC Voltage 600V (0.1V) ±1.2%
DC Current 10A (0.1µA) ±1.2%
AC Current 10A (0.1µA) ±1.5%
Resistance 40M? (0.1µ?) ±1.2%
Capacitance 100µF (0.001nF) ±3.0%
Frequency 5MHz (0.01Hz) ±1.0%
Temperature -4 to 1400°F (1°) -20 to 750°C ±(1%+4°)
Power 2 x AAA batteries
Dimensions/Weight 5.43x2.83x1.5" (138x72x38mm)/5.4oz (153g)
