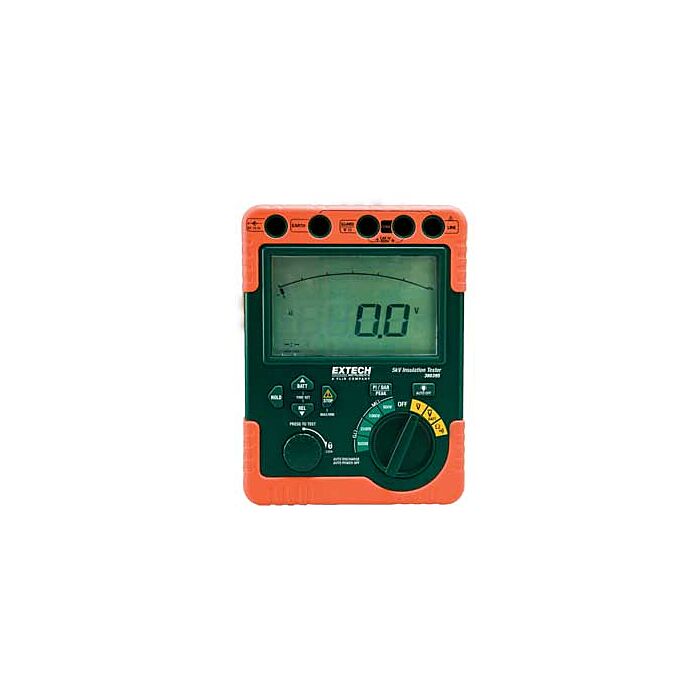

Overview
Product Highlights
Wide range measurement up to 5kV with insulation resistance to 60GΩ
Test Voltages of 500V, 1000V, 2500V, and 5000V
Large 6000 Count Display with Bargraph and Backlight
Polarization Index Measurement (PI)
Dielectric Absorption Ratio Measurement (DAR)
AC/DC Voltage Measurement with Max/Min, Peak and Relative Functions
1 to 15 Minute Timer Function for Insulation Measurements
Resistance Measurement
Indication of Output Voltage and Discharge Voltage
Auto-Discharge Function and Voltage Output Warning Function
Auto Power Off and Battery Check
Test Voltage 500V/1000V/2500V/5000V
Insulation Resistance 6MΩ, 60MΩ, 600MΩ, 6GΩ, 60GΩ
Insulation Accuracy ±2.5% of reading
AC/DC Voltage 600V
Resistance 600Ω
Continuity 50Ω
Power Eight type C batteries
Dimensions/ Weight 7.8 x 5.8 x 3.4" (198 x 148 x 86mm)/3.2lbs (1438g)
