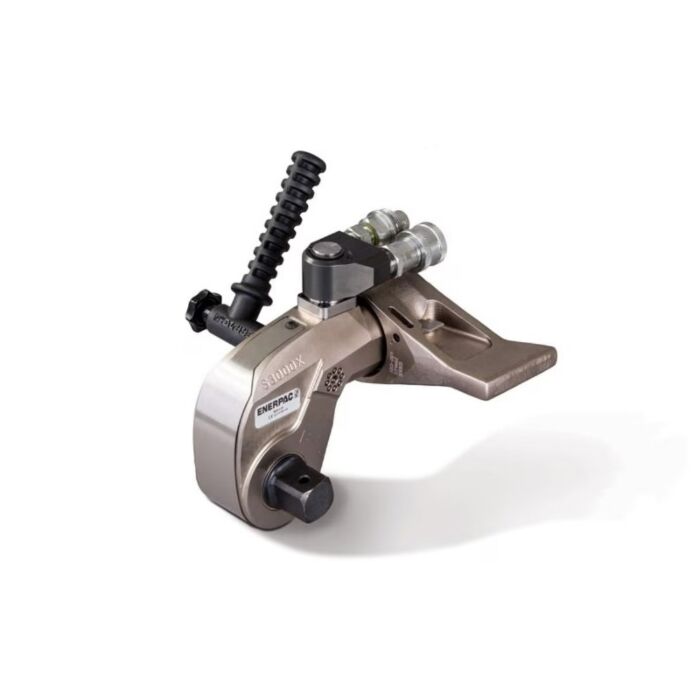

Enerpac S3000X Hydraulic Torque Wrench, 3225

Hydraulic Torque Wrench 3225

Order #: S3000X

Mfg #: S3000X

New

$11,492.60

Availability: Ships in 3-4 weeks

Compact, high-strength uni-body construction provides a small operating radius without sacrificing endurance
35° rotation angle and rapid return stroke for fast operation
Tough manifold design with added safety feature for enhanced operator safety
360° click-on reaction arm with quick release lever provides easier handling, even when wearing gloves
Includes robust handle which mounts on both sides of tool for extra maneuverability
Push button square drive release for quickly reversing the square drive for tightening or loosening
Constant torque output provides accuracy of +/-3% across full stroke
Optional Angle-of-Turn Indicator provides measurement of rotation
ATEX declared. Calibration certificate included. All S-Series X-edition tools are CE - ATEX declared and are shipped complete with a calibration certificate.

Square Drive (in)	1
Nominal Torque Rated At	10,000 psi 690 bar
Maximum Torque Output (Ft.lbs)	3225
Maximum Torque Output (Nm)	4373
Minimum Torque Rated At	1000 psi 69 bar
Minimum Torque (Ft.lbs)	323
Minimum Torque (Nm)	437
Maximum Operating Pressure (psi)	10,000
Weight (lbs)	12.3

Enerpac S Series Datasheet
